XPDU Power Distribution Unit

XPDU Power Distribution Unit offers up to 24 outlets, 15–50A capacity, and versatile mounting for reliable power in data centers and wiring closets.

15A, 20A, 30A, 50A

Rack power distribution solutions designed to meet the needs of any data center or wiring closet

General Details

Improve data center power distribution with the XPDU family, a series of power distribution units that combine the key features needed to manage high density equipment racks or wiring closets.

XPDUs deliver reliable power distribution to multiple units of connected equipment by adding up to 24 receptacles to your rack space. These PDUs compliment your current power source and are compatible with any manufacturer’s UPS.

Product Snapshot

Available 120V models: 15A, 20A
Available 208V & 240/120V models: 30A, 50A
Vertical and horizontal configurations
UL, cUL, FCC, CE (varies by model)
3 year full warranty (USA and Canada)

Categories: Backup Power, Power Distribution Tags: Backup Power, Power Distribution Brand: Xtreme

Description
Reviews (0)

Specifications

	MODEL NUMBER	Input Power Connection	Outlets	Voltage	Circuit Breaker	Dimensions (W x D x H)	Weight
Switched PDU	XPD0815SL	Detachable 10 ft, 5–15P	(8) 5–15/20R	120V	15A	17 x 3.75 x 1.7 in (1U)	4.4 lbs
Switched PDU	IEC C14 inlet	(2) 5–15R	120V	N/A	5.4 x 6.0 x 2.5 in	2.0 lbs
Transformer PDU with meter	XPD-IT60A	3 ft, L6–30P	(12) 5–15/20R	208V input, 120V output	30A	19.0 x 18.0 x 3.5 in (2U)	137 lbs
Transformer PDU with meter	XPD-AT15A	Detachable 3 ft, IEC C14	(8) 5–15R front + (8) 5-15R rear	208V input, 120V output	15A	19.0 x 10.5 x 3.5 in (2U)	19.7 lbs
Basic PDU – 15A & 20A models	XPD815HV	12 ft, 5–15P	(8) 5–15R	120V	15A	17 x 3.75 x 1.7 in (1U)	2.6 lbs

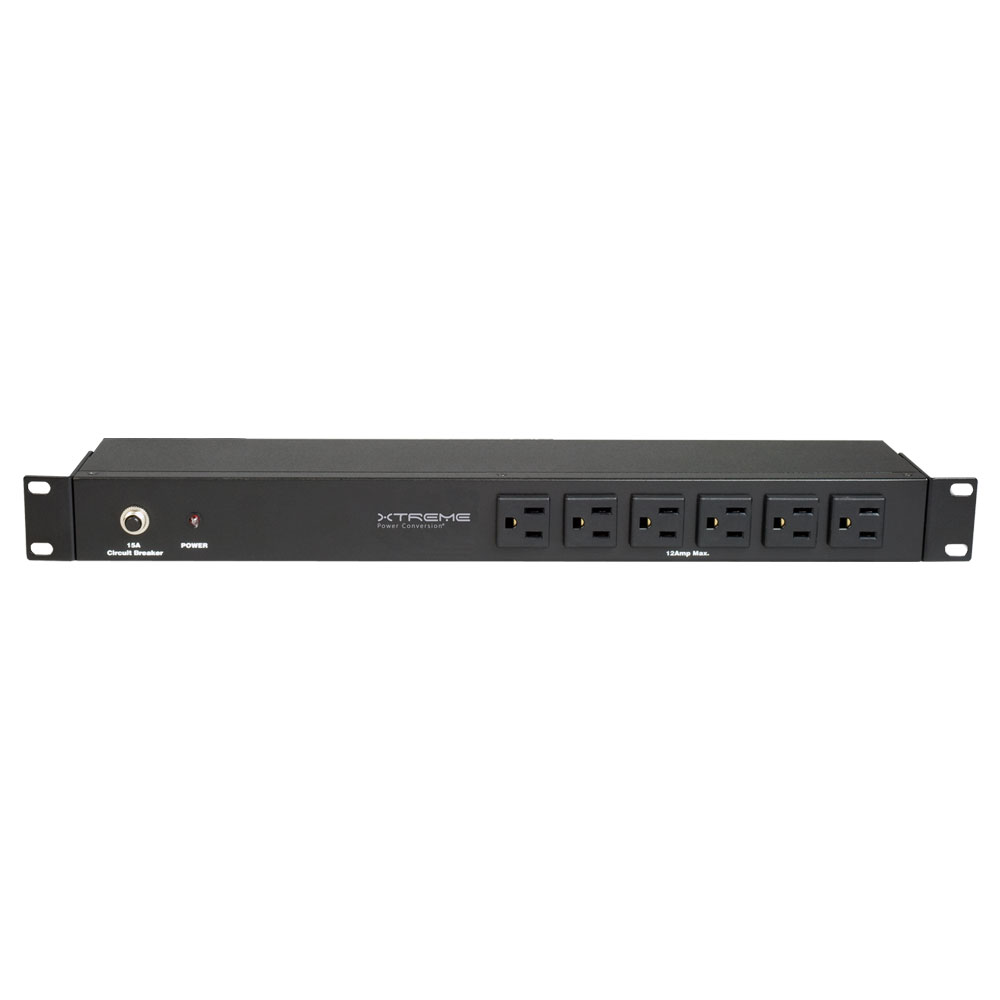

	XPD1415HV	12 ft, 5–15P	(14) 5–15R	120V	15A	17 x 3.75 x 1.7 in (1U)	3.5 lbs
	XPD1420HV	12 ft, 5–20P + L5–20P	(14) 5–20R	120V	20A	17 x 3.75 x 1.7 in (1U)	4.8 lbs

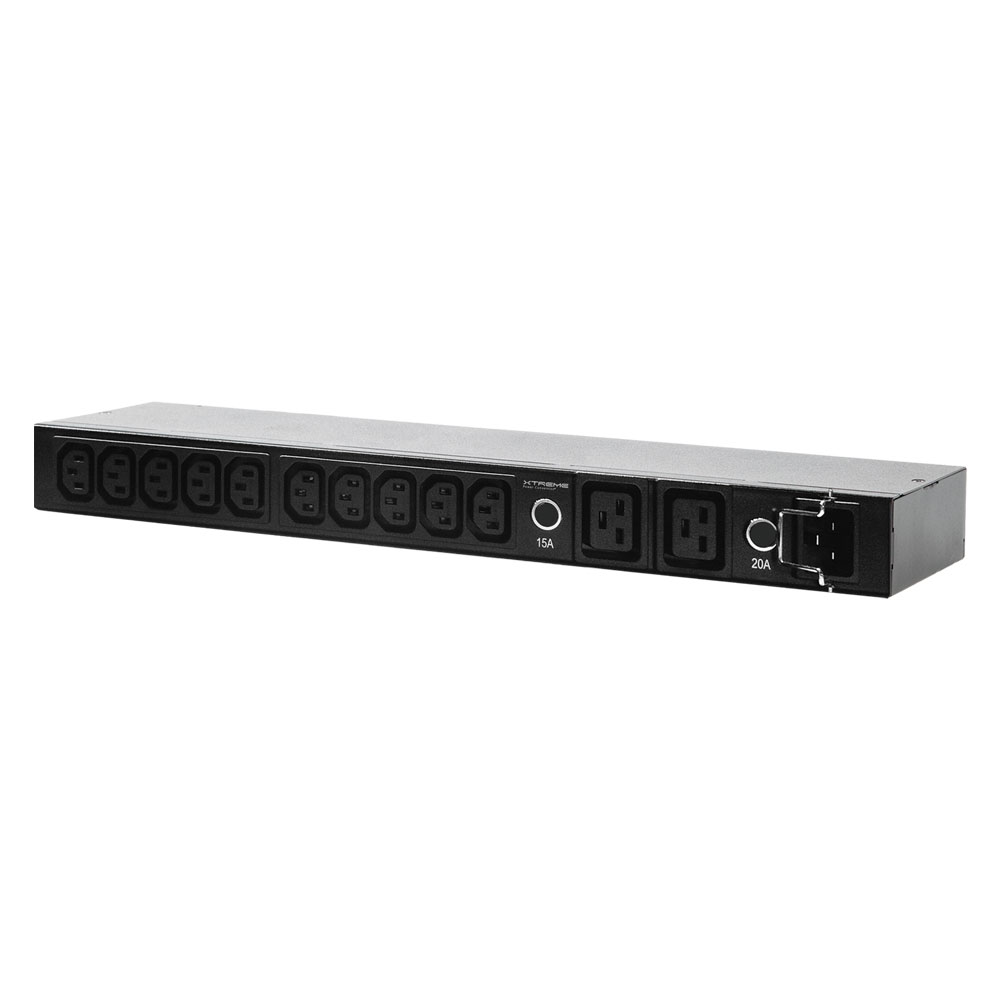

	XPDU-IEC	IEC C20 inlet	(2) IEC C19 + (10) IEC C13	230V	15/20A	17 x 3.75 x 1.7 in (1U)	4.4 lbs

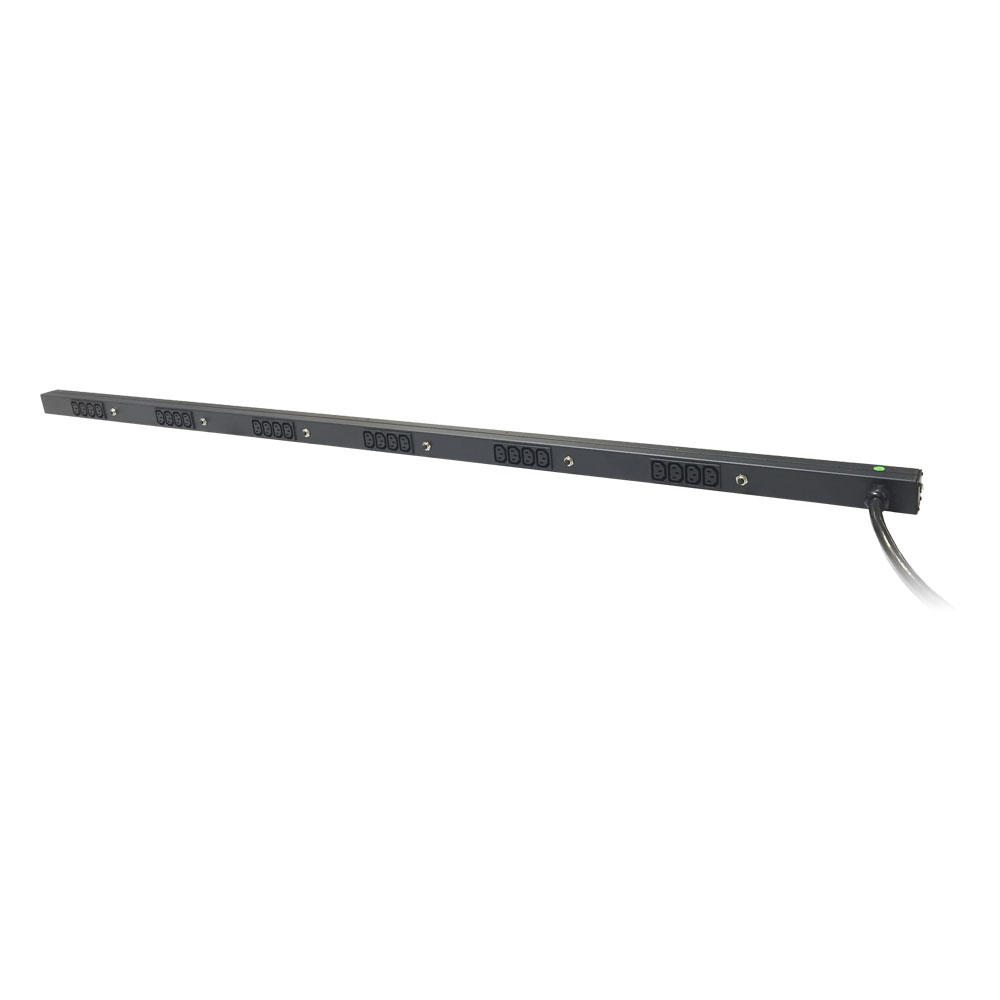

Basic PDU – 30A & 50A models	XPD24C13V	6 ft, L6–30P	(24) C13	208V	30A	66.0 x 1.8 x 1.8 in	12.0 lbs
	XPD31	6 ft, L6–30P	(2) L6–30R + (2) L6–20R + (4) 6–15/20R	240V	30A	19.0 x 4.7 x 3.5 in (2U)	9.0 lbs
	XPD32	6 ft, L6–30P	(2) L6–30R + (4) L6–20R	240V	30A	19.0 x 2.4 x 3.5 in (2U)	7.5 lbs
	XPD33	6 ft, L6–30P	(4) IEC C19 + (8) IEC C14	240V	30A	19.0 x 2.4 x 3.5 in (2U)	6.0 lbs
	XPD34	6 ft, L14–30P	(2) L6–30R + (4) L6–20R + (12) 5–20R	240/120V	30A	19.0 x 4.7 x 3.5 in (2U)	9.5 lbs
	XPD35	Pigtail	(2) L6–30R + (4) L6–20R	240V	50A	19.0 x 2.4 x 3.5 in (2U)	7.0 lbs
	XPD36	Pigtail	(4) IEC C19 + (8) IEC C14	240V	50A	19.0 x 2.4 x 3.5 in (2U)	6.8 lbs
	XPD37	Pigtail	(2) L6–30R + (4) L6–20R + (12) 5–20R	240/120V	50A	19.0 x 4.7 x 3.5 in (2U)	10.0 lbs
Value PDU	XPS1215HVP	6 ft, 5–15P	(12) 5–15R	120V	15A	17 x 1.5 x 1.7 in (1U)	1.4 lbs
