P80g Pure Sine Wave Line Interactive UPS

P80g Pure Sine Wave Line Interactive UPS delivers up to 4.5kW of efficient, reliable power in a compact 2U rack or tower configuration.

3000VA, 5000VA

208VAC or 208/120VAC

Up to 4.5kW of efficient reliable power in just 2U rack space.

General Details

The P80g is a pure sine wave line interactive UPS that protects critical data and equipment from power problems while supplying clean and reliable network grade power

P80g units provide the highest efficiency available, with utility cost savings at all load levels. P80g flexible design accommodates tower or rack mounting.

Product Snapshot

Available models: 3000VA, 5000VA
208VAC, 230VAC, 240/120VAC, and 208/120VAC
Tower, 2-post and 4-post rack mounting configurations available
Up to 5KVA of power, with internal batteries, all in a 2U package
Extended battery runtimes with optional matching battery modules
CE, RoHS certifications
3 years electronics, 3 years battery warranty (USA and Canada)

Categories: Backup Power, Line Interactive UPS Tags: Backup Power, Line Interactive UPS Brand: Xtreme

Description
Reviews (0)

Specifications

	MODEL NUMBER	P80g-3000	P80g-5000	P80g-5KB3
CAPACITY	Power Rating	3000VA (2700W)	5000VA (4500W)	5000VA (4500W)
INPUT	Voltage nominal	208/220/230/240VAC		208VAC or 240VAC
	Voltage range	162–290VAC
	Frequency	50/60Hz auto sensing		60Hz
OUTPUT	Voltage	208/220/230/240VAC		208/120VAC or 240/120VAC
	Waveform	Pure sine wave
	Transfer time (typical)	2–6ms
	Efficiency	Up to 99% ECO mode, 95% buck and boost mode
	Harmonic distortion	2% @ 100% linear load; 5% @ 100% non-linear load
BATTERY	Battery type	Sealed, maintenance-free lead acid
	Battery quantity and size	(6) 12V 9AH	(6) 12V 580W at 5 min
	Charging current	1.5A max
	Typical recharge	4 hours to 90%
PHYSICAL	Dimensions (W x D x H)	17.2 x 23.6 x 3.5 in (2U)		17.2 x 23.6 x 7.0 in (4U)
	Weight	61.9 lbs	78.5 lbs	137 lbs
	Line Cord	8 ft, detachable C19 to L6–20P	6 ft, L6–30P
	Receptacles	(1) C19 + (8) C13	(1) L6–30R + (4) C19	(2) L6–30R + (2) L6–20R + (12) 5–15/20R
	Receptacle options	L6–30R, L6–20R, L6–15R, 6–15/20R
OPTIONAL BATTERY PACKS	Model number	P90-BP72	P80-BP72X
	Dimensions (W x D x H)	17.2 x 23.6 x 3.5 in	17.2 x 23.6 x 3.5 in
	Weight	104.4 lbs	110.4 lbs
	Battery	(12) 12V 9AH / 72V	(12) 12V 580W at 5 min / 72V
ENVIRONMENT	Operating Temperature	32–104°F (0–40°C)
	Audible noise	< 45dBA
	Altitude	11,500 ft above sea level
APPROVALS		CE, RoHS
WARRANTY		3 years electronics, 3 years battery warranty (USA and Canada)
COMMUNICATIONS INTERFACE		RS-232, USB, EPO, intelligent slot for optional cards (Web/SNMP, Relay/dry contact, Modbus)
INCLUDED IN BOX		Software CD, horizontal brackets, tower pedestals, user manual
AVAILABLE OPTIONS		5 year extended warranty, bypass distribution (XBDM), power distribution (XPDU), 4-post rail kit, 2-post shelf kit

Software & Firmware

ViewPower Software

Product Videos

Accessories

Image	Model	Description	Unit Weight	Unit Dimensions
	P90-BP72	72V Battery Pack for P80g-3000, 2U	104.4 lbs	17.2” x 24.6” x 3.5”
	P90-BP72X	72V High Rate Battery Pack for P80g-5000, 2U	110.4 lbs	17.2” x 23.6” x 3.5”

Image	Model	Description	Unit Weight	Unit Dimensions
	P90-RAIL	4-Post Rail Kit	5 lbs	3.8″ x 19.8″ x 2.8″
	XPC-2PRAIL	2-Post Rail Kit; Rated for 125 lbs	5 lbs	4.0” x 20.0” x 3.0”

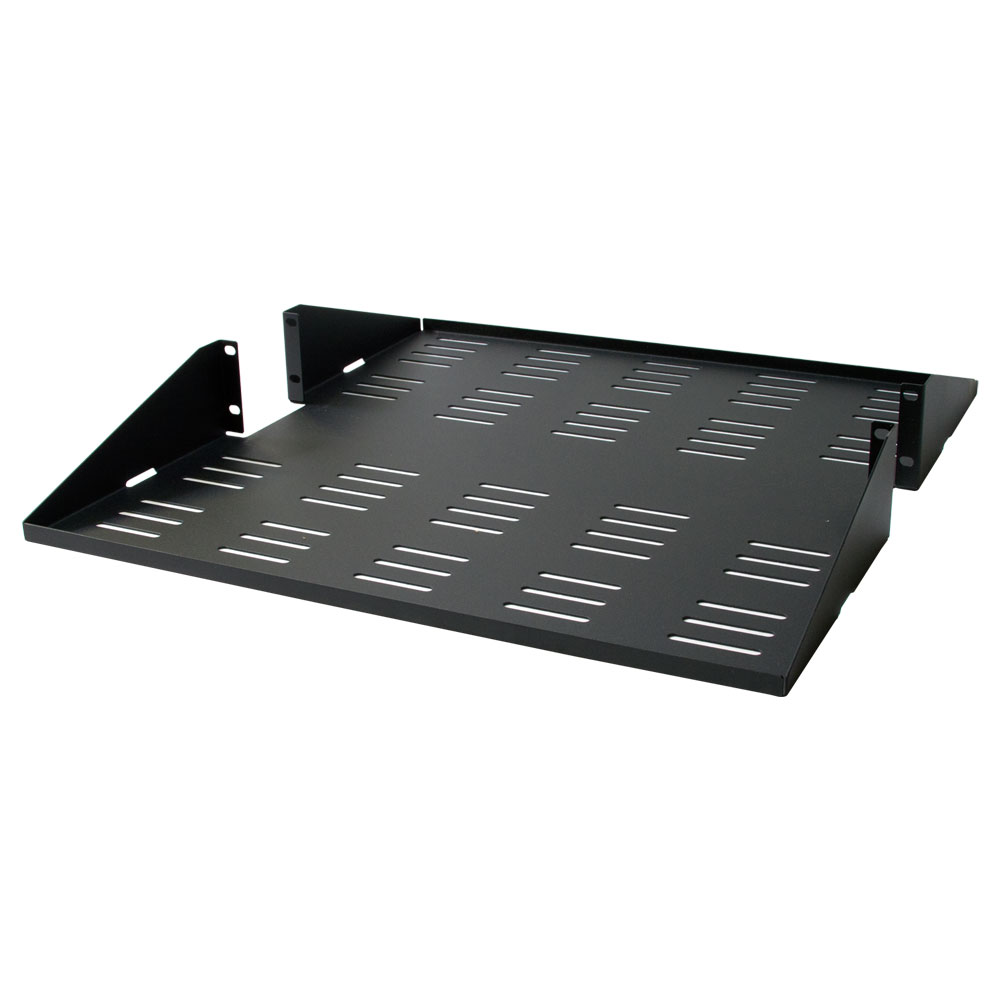

	XPC-2POSTL	2-Post Shelf Kit; Rated for 150 lbs	9 lbs	21.5″ x 23.3″ x 3.5″

Image	Model	Description	Unit Weight	Unit Dimensions

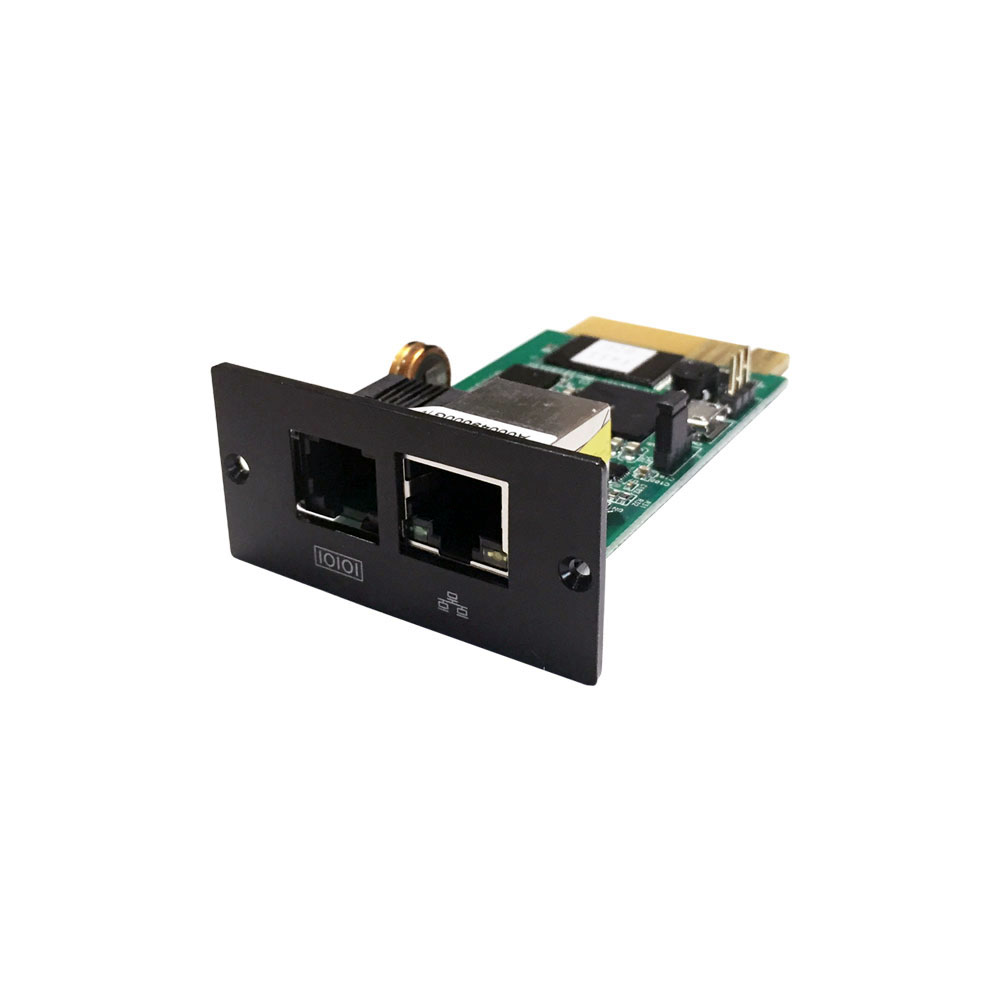

	SNMP-2PMINI	Two Port Internal SNMP Card	1 lb	7.25″ x 6″ x 2.5″
	SNMP-EMD	Environmental Monitoring Device	1 lb	7.25″ x 6″ x 2.5″

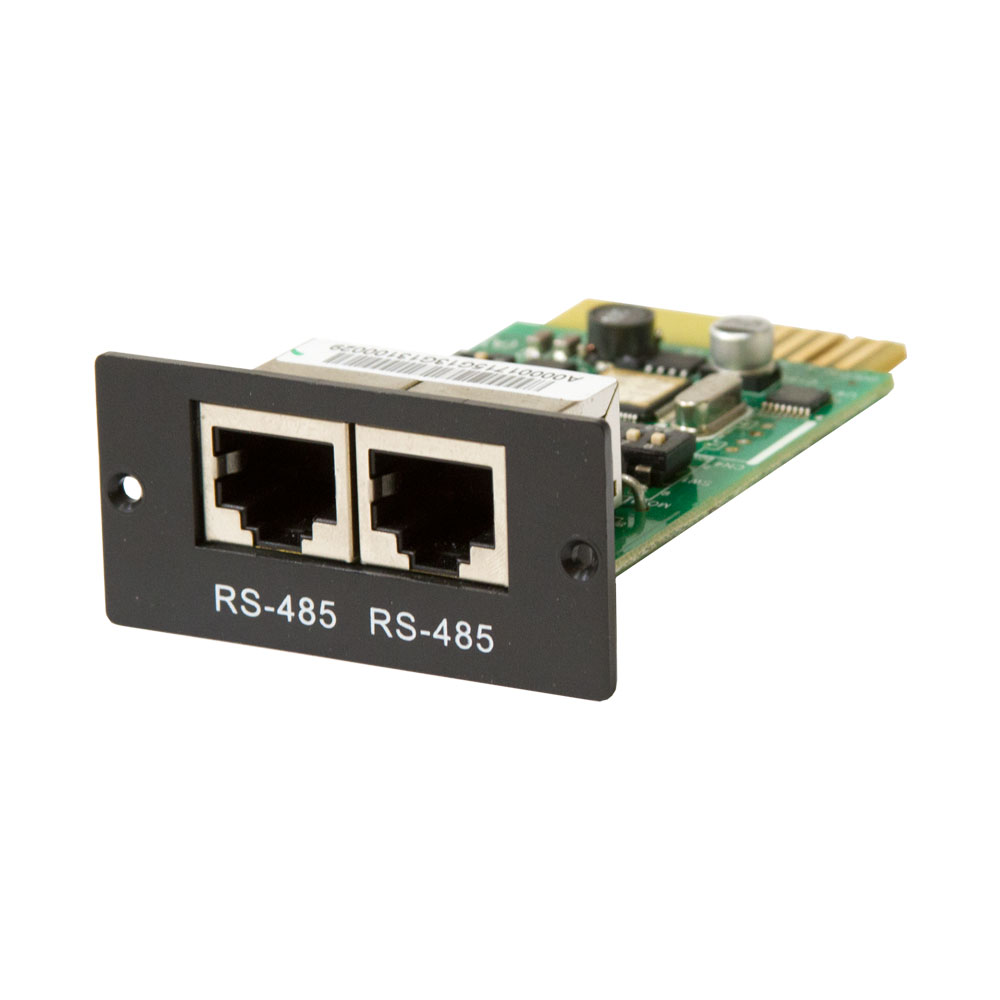

	MODBUS-IN	Modbus Card	1 lb	7.25″ x 6″ x 2.5″

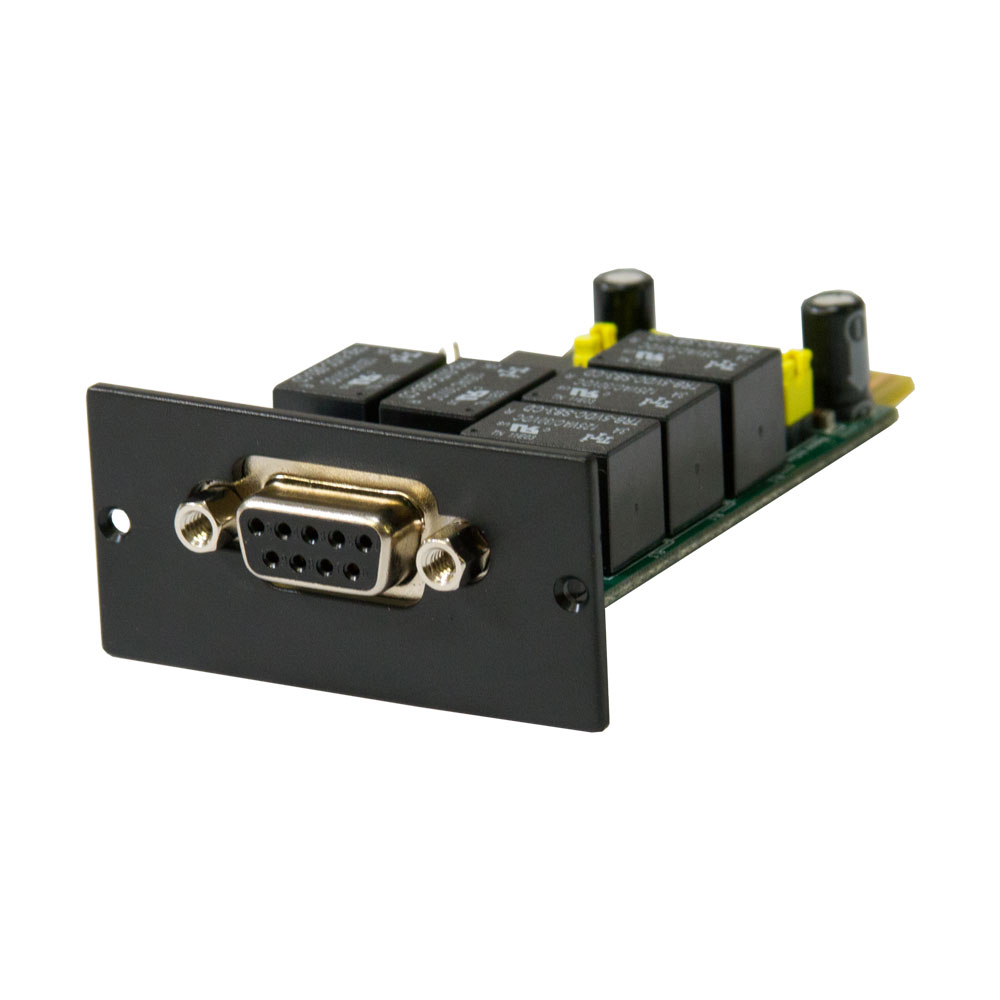

	RELAY-MINI	General Relay Contacts with DB9 & Terminal Block Adapter	1 lb	7.25″ x 6″ x 2.5″

Image	Model	Description	Utility Input	Output Connections	UPS Connections	Unit Weight	Unit Dimensions
	XBDM1020HV2	Bypass 16A Capacity for use with P80g-3000 (Includes (2) IEC C20 C19 Cord Kit)	IEC C20 inlet	(2) IEC C19 + (4) IEC C13 front, (4) IEC C13 back	IEC C20	3.5 lbs	19.3″ x 3.5″ x 1.75″

Image	Model	Description	Unit Weight	Unit Dimensions
	XPC-2PRAIL	2-Post Rail Kit; Rated for 125 lbs	5 lbs	4.0” x 20.0” x 3.0”
	XPC-2POSTL	2-Post Shelf Kit; Rated for 150 lbs	9 lbs	21.5″ x 23.3″ x 3.5″
