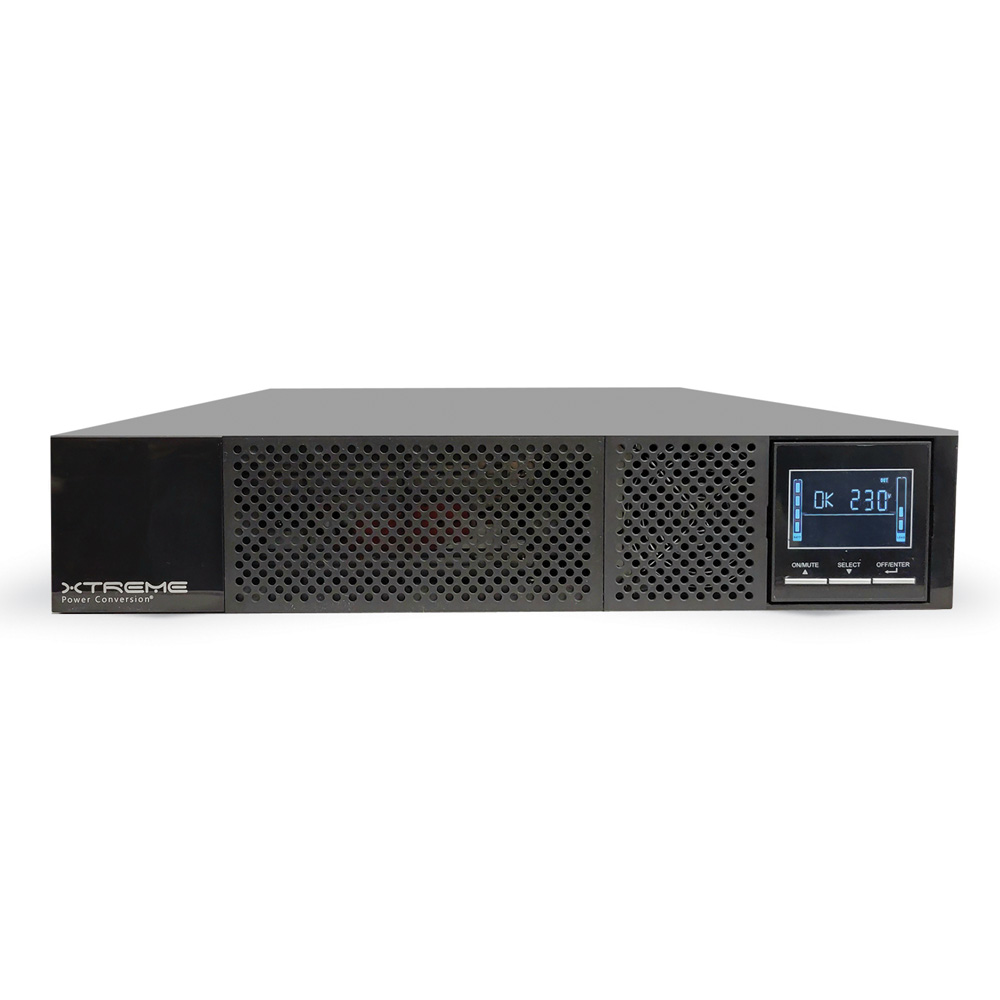

P91g Li 1.5-3kVA Online UPS

P91g Li 1.5-3kVA Online UPS delivers 98% efficiency, 10-year lithium-ion batteries, and hot-swappable design for critical IT protection.

1.5kVA-3kVA

230VAC

High performance online UPS with up to 10 year battery lifespan

General Details

Lithium-ion battery technology provides up to 10 years of battery life and reduced cost of ownership.

When compared to typical lead acid batteries, lithium-ion batteries provide more than twice the life, higher temperature tolerance, longer runtime, and faster recharge. Online double conversion technology makes P91g Li UPS ideal for protection of network, server, edge and distributed IT applications.

P91g Li UPS models include redundant Battery Management Systems (BMS) insuring cell voltage balancing, current sharing and protection for over-charge and over-discharge

Product Snapshot

Available models: 1500VA, 2000VA, 3000VA
Up to 10 year battery life
Tower, wall, 2-post and 4-post rack mounting configurations
Extended battery runtimes with optional matching battery modules
UL, cUL, RoHS, FCC A, UN38.3 for battery transportation
6 years electronics, 6 years battery warranty (USA and Canada)

Categories: Backup Power, Online UPS Tags: Backup Power, Online UPS Brand: Xtreme

Description
Reviews (0)

Specifications

	MODEL NUMBER	P91g-1500	P91g-2000	P91g-3000
CAPACITY	Power Rating	1500VA (1350W)	2000VA (1800W)	3000VA (2700W)
INPUT	Voltage/frequency	110-300 VAC* / 50/60Hz auto-sensing
OUTPUT	Voltage	200/208/220/230/240 Vac selectable
	Frequency	50/60Hz ± 0.1Hz
	Efficiency	Up to 98%
BATTERY	Cell type	LFP26650 2600 mAh
	Cell configuration	15S2P	15S2P x2	24S1P x 3
	Charger voltage	52.5VDC		84VDC
	Charging current	1/2/4/6/8A (max.), adjustable through LCD
	Recharge time	1.5 hours to 90% charge
PHYSICAL	Dimensions (W x D x H)**	17.2 x 15.1 x 3.5	17.2 x 19 x 3.5	17.2 x 23.8 x 3.5
	Weight	25.6	33.5	45.2
	Line Cord	C14 inlet, 8 ft (2.4 m) L6-20P to C13 line cord	C20 inlet, 8 ft (2.4 m) L6-20P to C19 line cord
	Receptacles	(8) IEC C13		(1) IEC C19 + (8) IEC C13
ENVIRONMENT	Operating temperature	32–104°F (0–40°C)
ENVIRONMENT	Altitude	11,500 ft above sea level
APPROVALS		CE, RoHS, battery packs comply to UL1973 or UL2054 for battery transportation
WARRANTY		6 years electronics, 6 years battery warranty (USA and Canada)
COMMUNICATIONS INTERFACE		RS-232 (2U), USB, EPO, intelligent slot for optional cards (Web/SNMP, Relay/dry contact, Modbus)
INCLUDED IN BOX		ViewPower software, horizontal brackets, tower pedestals, user manual
AVAILABLE OPTIONS		Bypass distribution (XBDM), power distribution (XPDU), 4-post rail kit, 2-post shelf kit, wall mount bracket
