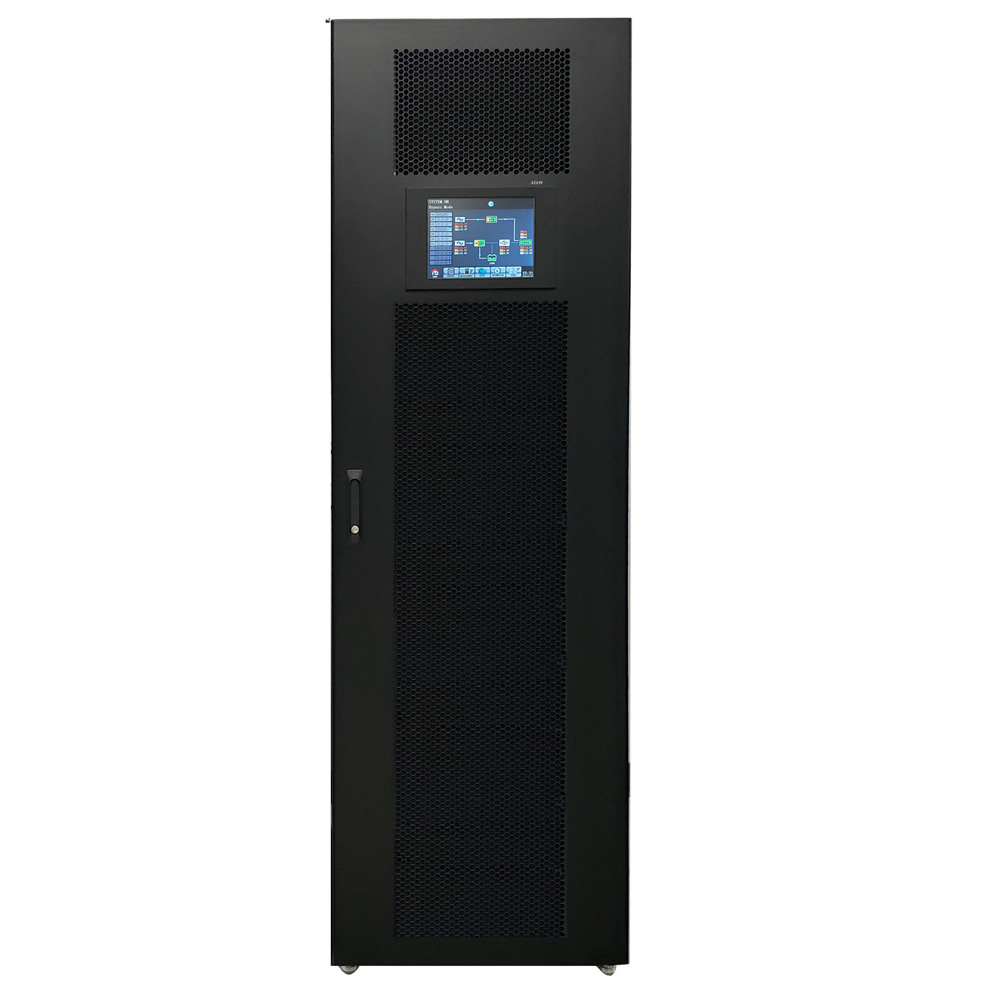

M90S-12S Modular Online UPS

M90S-12S Modular Online UPS delivers scalable 6–48kVA power with 98% efficiency and hot-swappable modules for critical IT infrastructure.

General Details

Xtreme Power M90S-12S UPS is a scalable, modular, flexible solution that combines continuous power availability and the highest efficiency for mission critical applications.

M90S provides unity power factor output (kVA = kW) providing maximum usable power and avoids any need to oversize the UPS. Integral maintenance bypass enables manual transfer of critical loads from UPS power to utility power, enabling UPS repair without power interruption to the load.

Capacity, redundancy, and battery runtime can all be customized to meet your specific needs. Hot swappable power and battery modules provide rapid maintenance and repair.

Product Snapshot

Capacities: 6kVA, 12kVA, 18kVA, 24kVA, 30kVA, 36kVA, 42kVA, 48kVA
Modular for capacity or redundancy
Unity output power factor (kVA =kW)
Hot swappable power and battery modules
Up to 98% ECO mode or 93% online efficiency
3 years electronics, 3 years battery warranty (USA and Canada)

Categories: Backup Power, Online UPS Tags: Backup Power, Online UPS Brand: Xtreme

Description
Reviews (0)

Xtreme M90S-12S – RoseWater HUB20 Comparison Xtreme M90S-12S – RoseWater HUB40 Comparison

Specifications

	MODEL NUMBER	M90S-12S6K	M90S-12S12K	M90S-12S18K	M90S-12S24K	M90S-12S30K	M90S-12S36K	M90S-12S42K	M90S-12S48K
CAPACITY	Power Rating	6kkW	12kW	18kW	24kW	30kW	36kW	42kW	48kW
INPUT	Voltage/frequency nominal	120/208V or 120/240V // 50/60Hz auto-sensing							120/240V
INPUT	Connections	2PH+N+G
OUTPUT	Voltage/Frequency	120/208V or 120/240V // 50/60Hz auto-sensing							120/240V
	Efficiency/THD (full load)	Up to 98% ECO mode, 93% online mode / ≤2% (Linear load);≤3% (Non linear load)
	Overload capacity	100% – 110% for 30 min; 110% – 130% for 5min; 130% – 150% for 10s; > 150% for 200ms
BATTERY SYSTEM	Nominal voltage	+/-96VDC (default) or +/-120VDC
BATTERY SYSTEM	Max charging (adjustable)	14A per Power Module
DIMENSION & WEIGHT	Power Module	16.3”W x 24”D x 5.2”H / 38 lbs
	Battery Module (M90S-BMXRV2)	16.3”W x 24”D x 5.2”H / 107 lbs
	Battery Module (M90-BCBAT)	7.3”W x 38.5”D x 3.2”H / 85 lbs
SYSTEM DIMENSIONS	UPS	23.6”W x 36.0” D x 79.1”H // 586 lbs without modules
SYSTEM DIMENSIONS	M90-BC External Battery Cabinet	23.6”W x 43.8” D x 79.1”H // 416 lbs without modules
ENVIRONMENT	Temperature	0–40°C (32–104°F)
ENVIRONMENT	Altitude	5,200 ft above sea level
APPROVALS		UL-1778 (TUV), cUL, FCC A, RoHS
WARRANTY		3 year electronics, 3 year battery (USA and Canada)
COMMUNICATIONS INTERFACE		RS-232, USB, dry contacts, EPO, (2) intelligent slots for optional cards (Web/SNMP, Relay, Modbus)
INCLUDED IN BOX		User manual, USB cable, RS-232 cable, ViewPower Software, anchor brackets
AVAILABLE OPTIONS		User manual, USB cable, RS-232, ViewPower software, standard anchor brackets
