P90L Online UPS

P90L Online UPS offers 6kVA/10kVA power, 98% ECO mode efficiency, hot-swappable batteries, and extended runtimes for critical IT systems.

1250VA-3000VA

120VAC or 208/230VAC

Online UPS with a powerful charger for extended battery runtimes.

General Details

The P90L is a true online UPS with an internal high capacity charger for connection to matching extended battery packs or large external systems.

The P90L provides tower, rack, and wall mount options. It protects your equipment from blackouts, brownouts, sags, and surges. The P90L offers the lowest total cost of ownership by cutting energy costs and lowering heat output.

Product Snapshot

Available models: P90L-1500, 2000, 3000
98% efficiency in ECO mode
Tower, wall, 2-post and 4-post rack mounting configurations available
Extended battery runtimes with optional matching battery modules
UL, cUL, CE, RoHS
3 years electronics, 3 years battery warranty (USA and Canada)

Categories: Backup Power, Online UPS Tags: Backup Power, Online UPS Brand: Xtreme

Description
Reviews (0)

Specifications

	MODEL NUMBER	P90L-1500	P90L-2000	P90L-3000	P90Lg-3000
CAPACITY	AC output	1250VA (1125W)	1700VA (1530W)	2500VA (2250W)	3000VA (2400W)
CAPACITY	DC charging	246W	328W	493W	656W
INPUT	Voltage Range	50–150VAC*			110–300VAC*
INPUT	Frequency	50/60Hz auto-sensing
OUTPUT	Voltage	120VAC nominal (100/110/115VAC selectable)**			208/220/230/240VAC***
	Frequency	50/60Hz ± 0.5Hz
	Overload capacity	125% 2 min; 150% 10 sec; > 150% 1 sec
	THD (full load)	< 2%
	Crest factor	5:1
BATTERY CHARGER	Charger amps	6A
BATTERY CHARGER	Nominal/float voltage	36/41VDC	48/55VDC	72/82VDC
PHYSICAL	UPS dimensions (W x D x H)	17.2 x 18.9 x 3.5 in	17.2 x 18.9 x 3.5 in	17.2 x 25.8 x 3.5 in
	Weight	33 lbs	35 lbs	47 lbs
	Input connection	6 ft, 5–15P	6 ft, 5–20P	6 ft, L5–30P	8 ft, C19 to L6-20P
	Output connection	(8) NEMA 5–15R	(8) NEMA 5–15/20R	(1) NEMA L5–30R + (4) NEMA 5–15/20R	(1) IEC C19 + (6) IEC C13
ENVIRONMENT	Efficiency	Up to 98% ECO mode and 92% online mode (90% online mode for P90Lg-3000)
	Operating temperature	32–104°F (0–40°C)
	Audible noise	< 50dBA
	Altitude	11,500 ft above sea level
OPTIONAL BATTERY PACKS	Model number	P90-BP36 / 36E	P90-BP48	P90-BP72
	BP dimensions (W x D x H)	17.2 x 18.9 x 3.5 in /17.2 x 23.6 x 3.5 in (E)	17.2 x 18.9 x 3.5 in	17.2 x 23.6 x 3.5 in
	BP weight	58.1 lbs / 104.4 lbs (E)	74.6 lbs	104.4 lbs
	Battery quantity/type	(6) 12V9AH/36V / (12) 12V9AH / 36V (E)	(8) 12V9AH/48V	(12) 12V9AH/72V
APPROVALS		UL, cUL, RoHS			CE, RoHS
WARRANTY		3 years electronics, 3 years battery warranty (USA and Canada)
COMMUNICATIONS INTERFACE		RS-232, USB, EPO, intelligent slot for optional cards (Web/SNMP, Relay/dry contact, Modbus)
INCLUDED IN BOX		Software CD, horizontal brackets, tower pedestals, 16 in battery cable kit
AVAILABLE OPTIONS		5 year extended warranty, bypass distribution (XBDM), power distribution (XPDU), 4-post rail kit, 2-post shelf kit

*Depending on load level;

**P90L capacity derates 20% at 100V output voltage;

***P90Lg-3000 capacity derates 20% at 208VAC output voltage

Software & Firmware

ViewPower Software

Accessories

Model	Description	Unit Weight	Unit Dimensions
P90-BP36	36V Battery Pack for P90L-1500, 2U	58.1 lbs	17.2” x 19.9” x 3.5”
P90-BP36E	36V 4 String Extended Battery Pack for P90L-1500, 2U	104.4 lbs	17.2” x 24.8” x 3.5”
P90-BP48	48V Battery Pack for P90L-2000, 2U	74.6 lbs	17.2” x 19.9” x 3.5”
P90-BP72	72V Battery Pack for P90L-3000, P90Lg-3000, 2U	104.4 lbs	17.2” x 24.6” x 3.5”

Model	Description	Unit Weight	Unit Dimensions
P90-RAIL	4-Post Rail Kit	5 lbs	3.8″ x 19.8″ x 2.8″
XPC-2PRAIL	2-Post Rail Kit; Rated for 125 lbs	5 lbs	4.0” x 20.0” x 3.0”

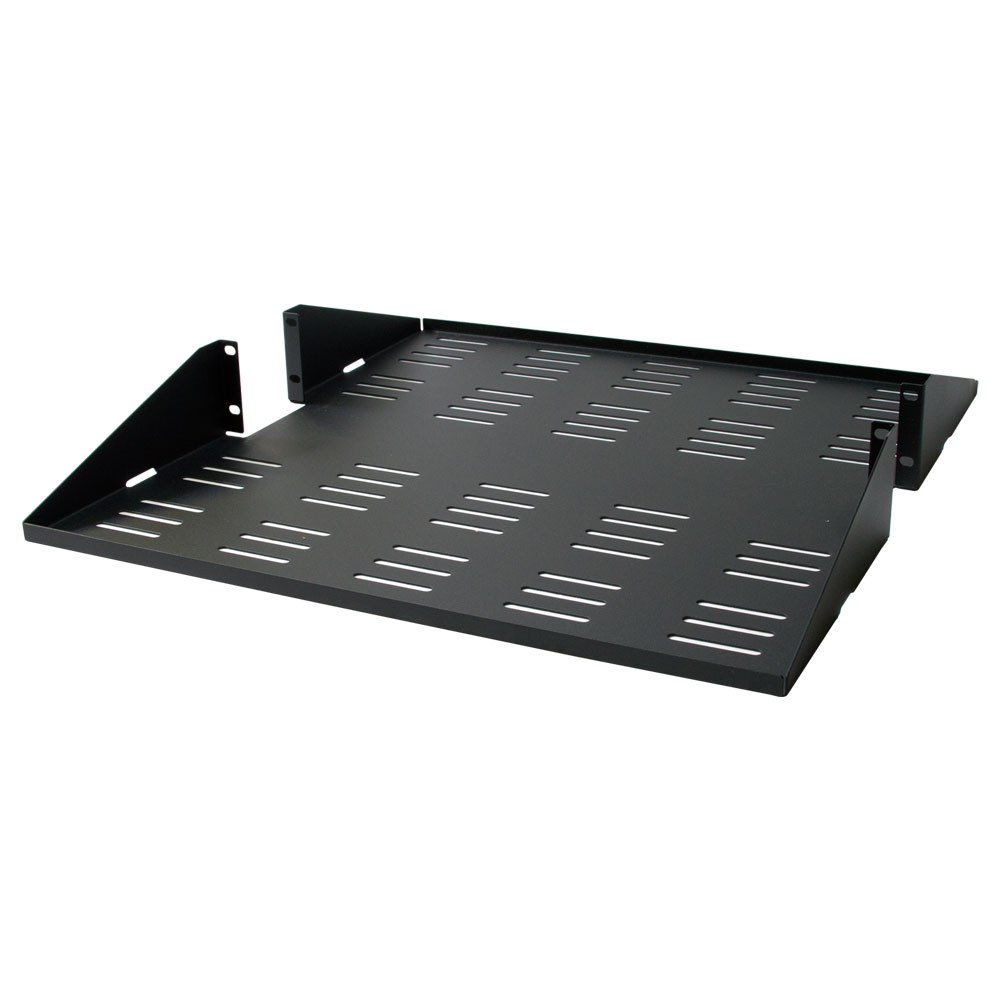

XPC-2POSTL	2-Post Shelf Kit; Rated for 150 lbs	9 lbs	21.5″ x 23.3″ x 3.5″

Model	Description	Unit Weight	Unit Dimensions

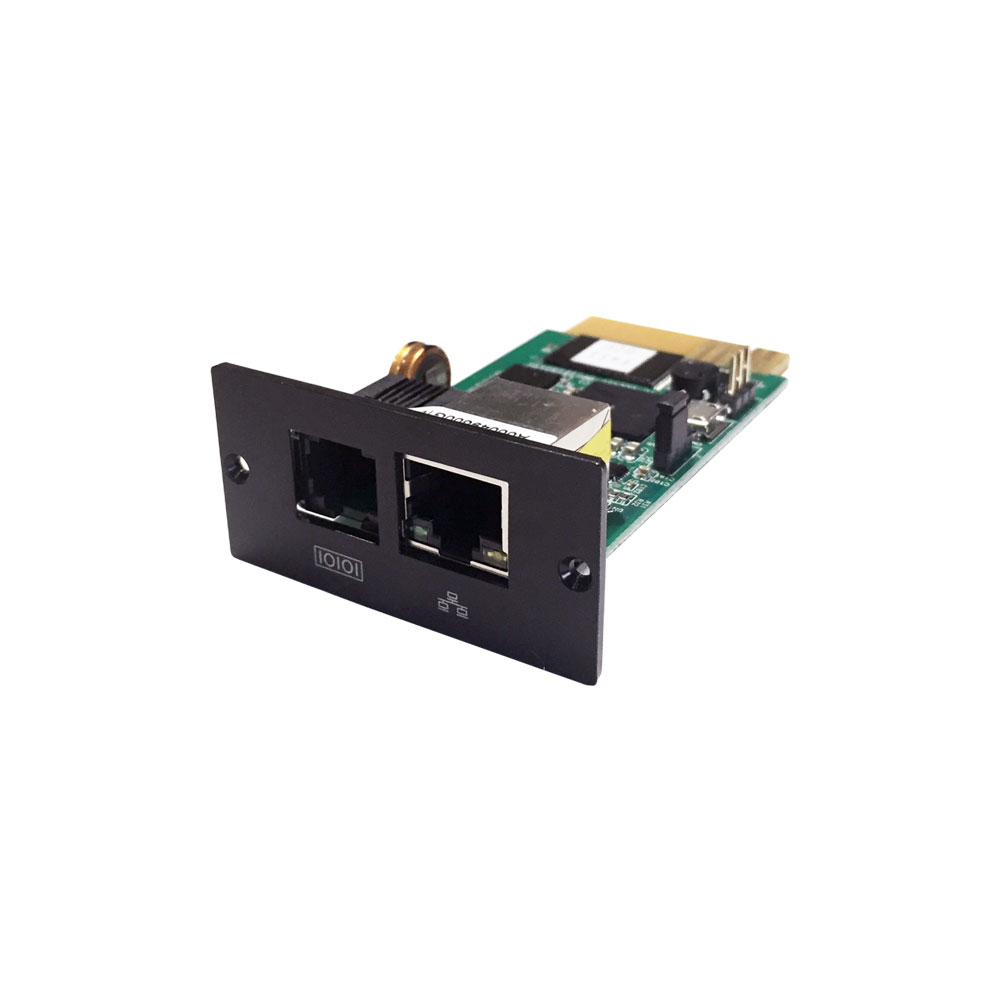

SNMP-2PMINI	Two Port Internal SNMP Card	1 lb	7.25″ x 6″ x 2.5″

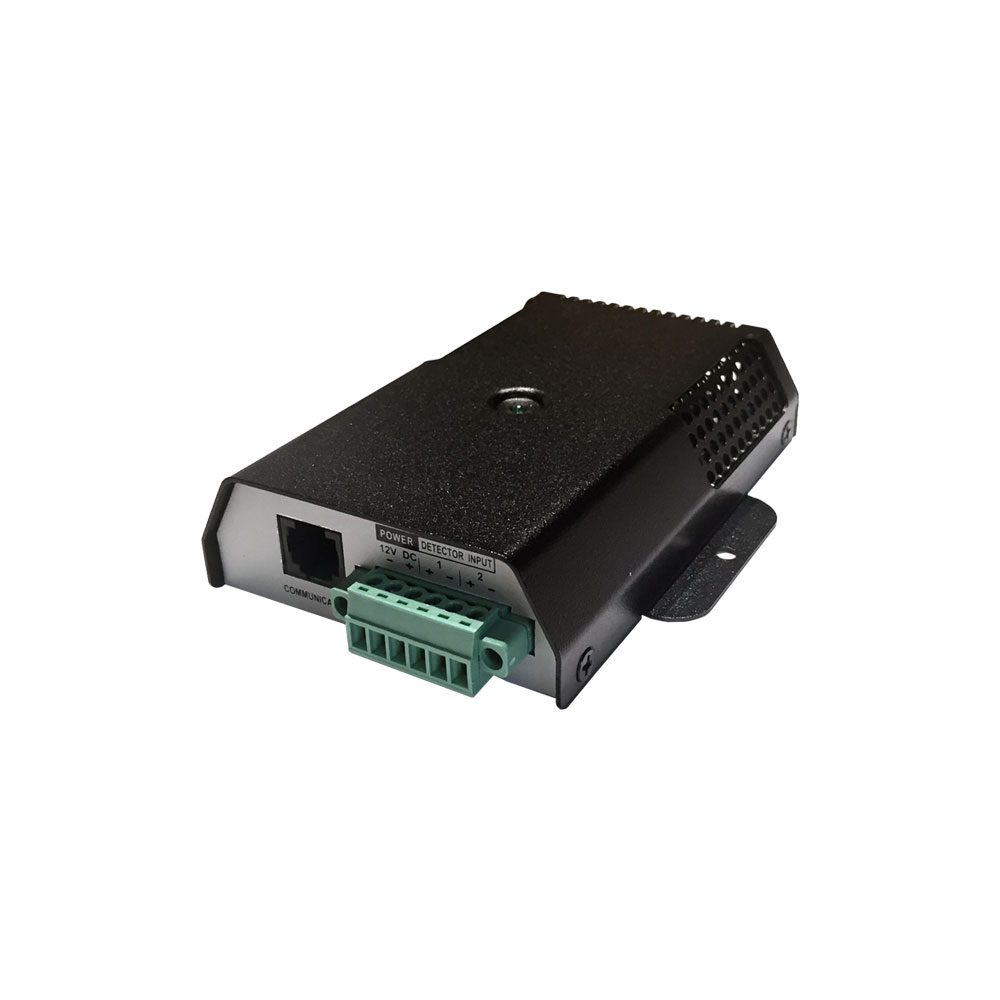

SNMP-EMD	Environmental Monitoring Device	1 lb	7.25″ x 6″ x 2.5″

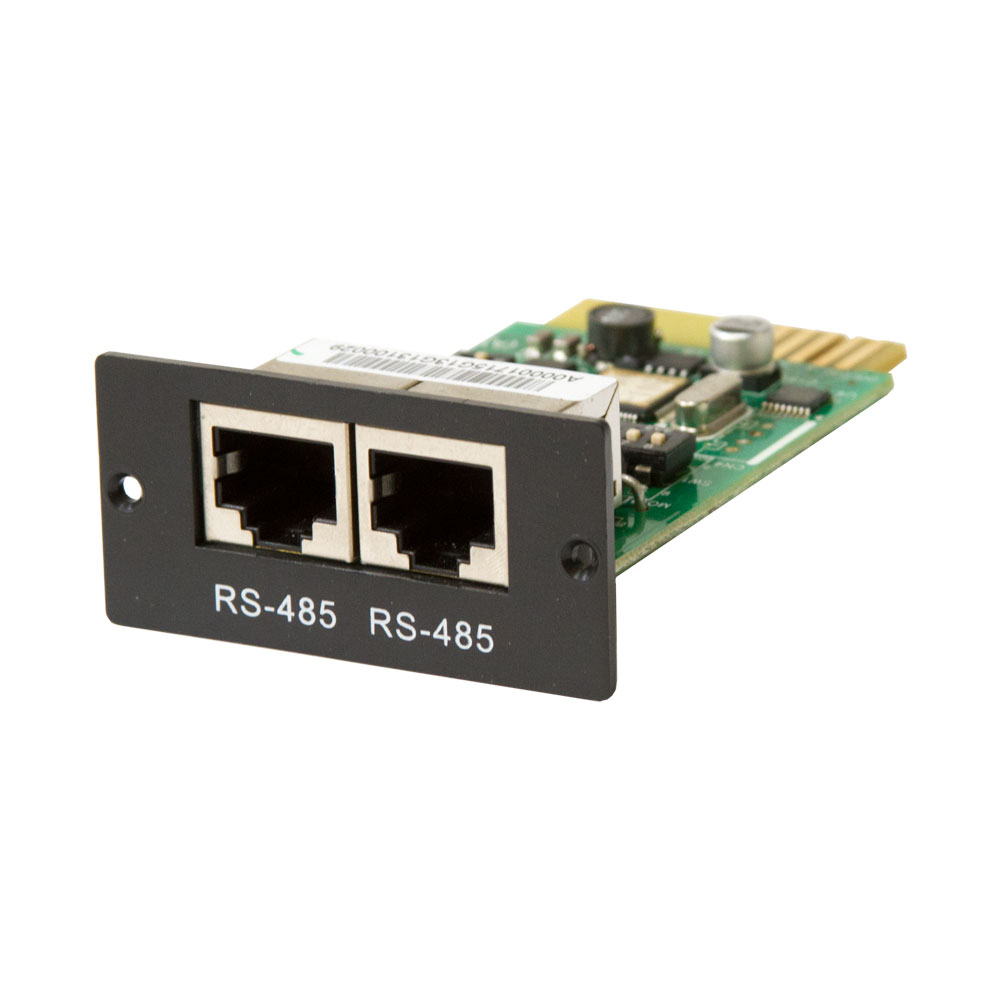

MODBUS-IN	Modbus Card	1 lb	7.25″ x 6″ x 2.5″
RELAY-MINI	General Relay Contacts with DB9 & Terminal Block Adapter	1 lb	7.25″ x 6″ x 2.5″

Model	Description	Utility Input	Output Connections	UPS Connections	Unit Weight	Unit Dimensions
XBDM-1015LV	Bypass 15A/120VAC for use with P90L-1500	5–15P, 12ft	(6) 5–15R front, (4) 5–15R back	5-15R	3.4 lbs	19” x 3.5” x 1.75”
XBDM-1020LV	Bypass 20A/120VAC for use with P90L-2000	5–20P, 12ft	(6) 5–20R front, (4) 5–20R back	5-20R	3.4 lbs	19” x 3.5” x 1.75”
XBDM-1030LV	Bypass 30A/120VAC for use with P90L-3000, P90Lg-3000	L5–30P, 6ft	(6) 5–20R front, (4) 5–20R back	L5-30R	3.4 lbs	19” x 3.5” x 1.75”
XBDM1020HV2	Bypass 16A Capacity for use with P90Lg-3000 (Includes (2) IEC C20 C19 Cord Kit)	IEC C20 inlet	(2) IEC C19 + (4) IEC C13 front, (4) IEC C13 back	IEC C20	3.5 lbs	19.3″ x 3.5″ x 1.75″

Model	Description	Input Power Cord	Outlets	Unit Weight	Unit Dimensions
XPD-1415HV	120V Basic Power Distribution Unit	5–15P, 12ft	(14) 5–15R	3.5 lbs	19.0″ x 3.5″ x 1.75″
XPD-1420HV	120V Basic Power Distribution Unit	L5–20P, 12ft or 5–20P with adapter	(14) 5–25R	4.8 lbs	19.0″ x 3.5″ x 1.75″
XPDU-IEC	230V Basic Power Distribution Unit for use with P90Lg-3000	IEC C20 inlet	(10) IEC C13 + (2) IEC C19	2.6 lbs	19.0″ x 3.5″ x 1.75″
XPD-AT15A	1500W Transformer PDU with Meter 208V to 120V for use with P90Lg-3000	Detachable IEC C14, 3ft	(16) 5–15R	19.7 lbs	19.0” x 10.5” x 3.5”
XAT-400	400VA Step Down Transformer 208V to 120V for use with P90Lg-3000	208V IEC C14, 2ft	120V 5–15R, 2ft	8.0 lbs	7.0” x 6.8” x 5.9”
