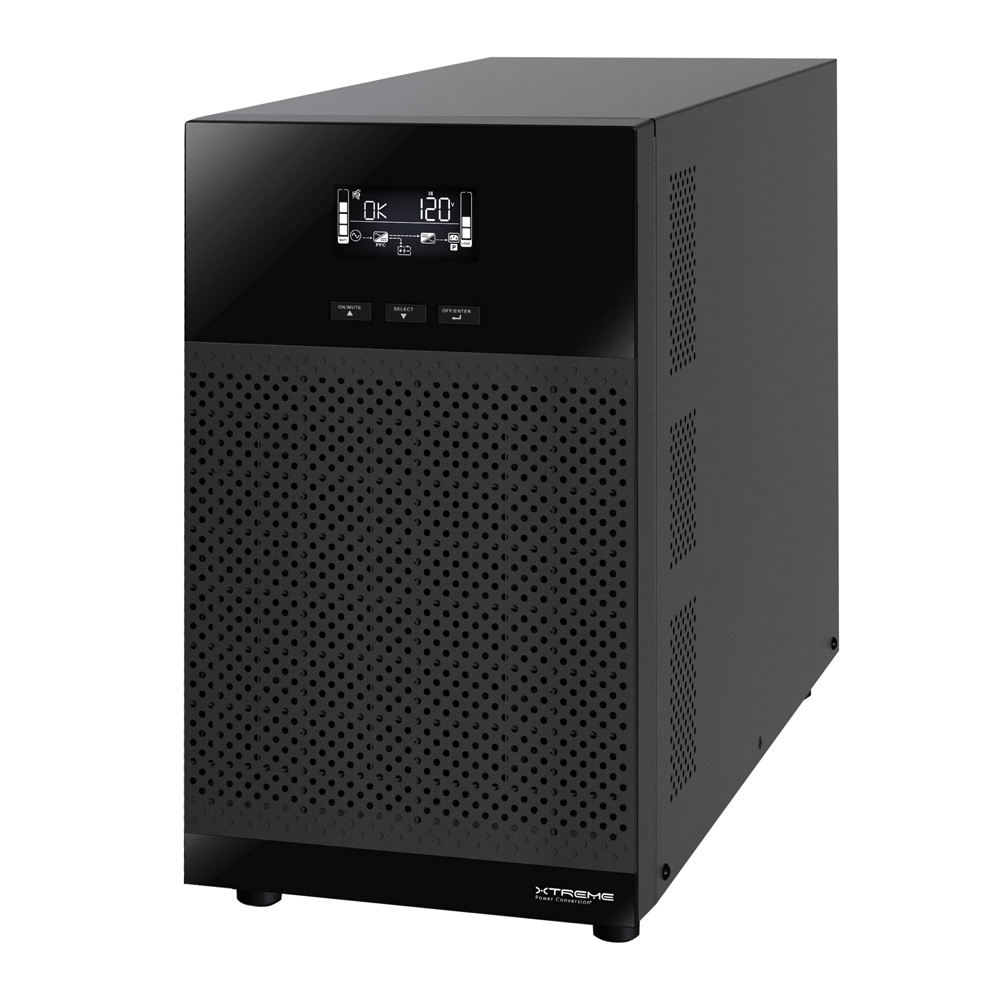

T91 Online UPS

T91 Online UPS delivers 700VA–3000VA power with 98% ECO efficiency, unity power factor, and extended runtime for critical IT applications.

700VA-3000VA

120VAC or 208/230VAC

Unity power factor tower UPS provides high density online power protection for unstable power conditions.

General Details

T91 UPS provides double conversion online power for light industrial applications, point of sale, servers, voice & data networks, and laboratories. T91 features unity output power factor to support up to 43% more critical loads than typical UPSs.

Extended battery runtimes are available from the T91 by adding up to seven matching battery packs.

T91 battery charger can be programmed to provide up to 8 amps of recharge current to insure batteries are recharged quickly and prepared for the next utility outage.

Product Snapshot

Available 120V models: 700VA, 1000VA, 1500VA, 2000VA, 3000VA
Available 208/230V model: 2000VA
Extended battery packs available
Controlled load segments
UL, cUL, CE, RoHS, FCC B, FCC A
3 years electronics, 3 years battery warranty (USA and Canada)

Categories: Backup Power, Online UPS Tags: Backup Power, Online UPS Brand: Xtreme

Description
Reviews (0)

Specifications

	MODEL NUMBER	T91-700	T91-1000	T91-1500	T91-2000	T91-3000	T91i-2000
INPUT	Capacity	700VA (700W)	1000VA (1000W)	1500VA (1450W)	2000VA (1930W)	3000VA (2880W)	2000VA (2000W)
	Voltage Range	55–150VAC*					110–300VAC*
	Frequency	50/60Hz auto sensing
OUTPUT	Voltage	120VAC nominal (100/110/115/127VAC selectable)***					208/220/230/240VAC***
	Waveform	Sine wave, zero transfer time
	Frequency	50/60Hz auto sensing ≤ 1%
	Efficiency	Up to 98% ECO Mode and 92% online mode
	Overload capacity	> 110% & ≤ 130% for 5 min; > 130% & ≤140% for 30 sec; >140% for 1.5 sec
BATTERY	Battery type	(2) 12V9AH	(3) 12V9AH	(3) 12V9AH	(6) 12V9AH	(6) 12V9AH	(6) 12V9AH
BATTERY	Recharge	3 hours to 95% for internal battery with 2A charge current
PHYSICAL	UPS dimensions (W x D x H)	5.6 x 15.6 x 8.6 in			7.4 x 16.5 x 12.5 in
	UPS weight	25.7 lbs	30 lbs	34.3 lbs	63 lbs	66 lbs	62 lbs
	Line cord	6ft, 5-15P			6ft, C19 to L5-20P	6ft, L5-30P	6 ft, C19 to L6-20P
	Receptacles	(6) 5–15R*			(1) L5-20R + (8) 5-20	(1) L5-30R + (8) 5-20R	(1) C19 + (8) C13
OPTIONAL BATTERY PACKS	Model number	N/A	T91-BP36A		T91-BP72A
	BP dimensions (W x D x H)	N/A	5.6 x 15.6 x 8.6 in		7.4 x 16.5 x 12.5 in
	BP weight	N/A	44 lbs		82 lbs
ENVIRONMENT	Temperature	32–104°F (0–40°C)
	Audible noise	< 50 dB with fan speed control
	Altitude	11,500 ft above sea level
APPROVALS		UL1778 (cTUVus), FCC B, RoHS			UL1778 (cTUVus), FCC A, RoHS		CE, RoHS
WARRANTY		3 years electronics, 3 years battery warranty (USA and Canada)

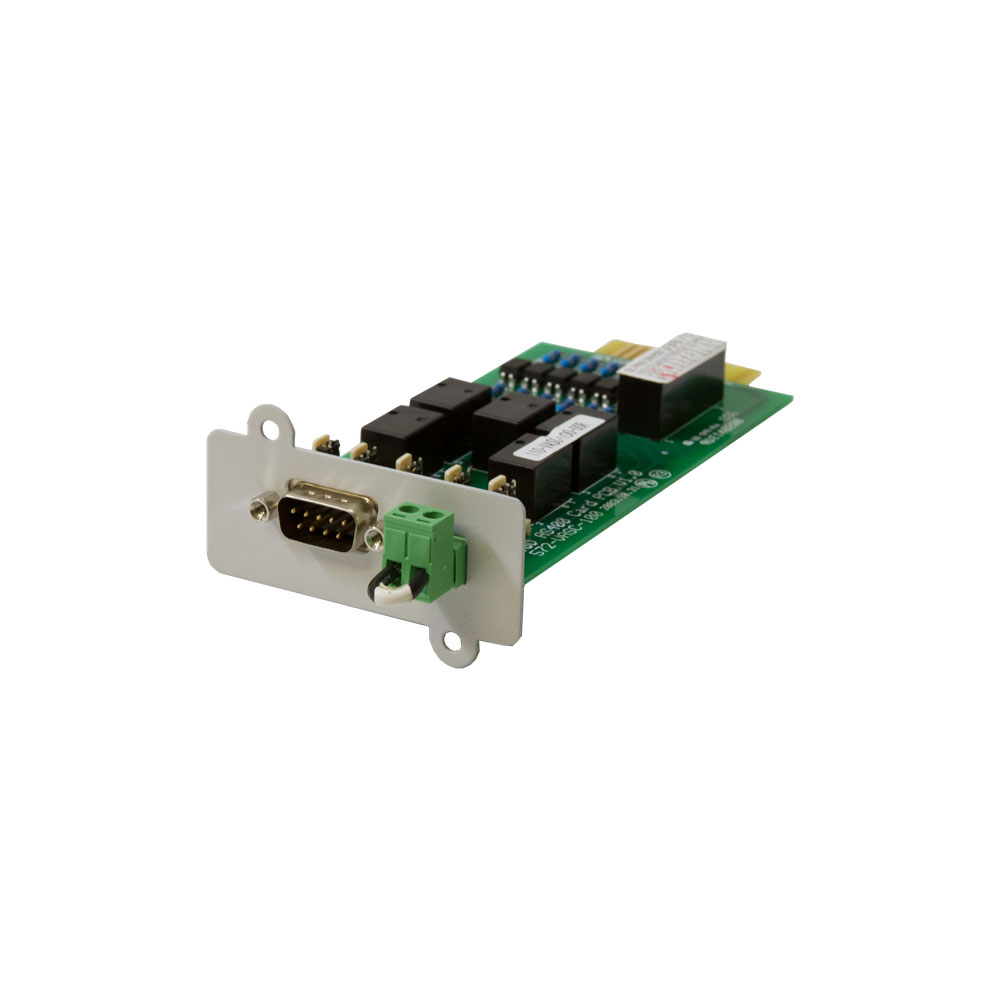

COMMUNICATIONS INTERFACE		RS-232, USB, EPO, intelligent slot for optional cards (Web/SNMP, Relay/dry contact, Modbus)
INCLUDED IN BOX		ViewPower monitoring software CD, USB cable, user manual
AVAILABLE OPTIONS		Extended warranty, bypass distribution (XBDM), power distribution (XPDU)

*T91-2000 is also available with an L5–20P input and (1) L5–20R + (10) 5–15R output.

**Depending on load level.

***T91 capacity derates 10% at 110VAC and 20% at 100VAC output voltage.

Software & Firmware

ViewPower Software

Accessories

Image	Model	Description	Unit Weight	Unit Dimensions
	T90-WMB	Wall Mount Bracket for use with T91-700, T91-1000, T91-1500, T90-2000, T91i-2000; Rated for 40 lbs	5 lbs	4.0”-8.0” x 7.0” x 8.0”

Image	Model	Description	Unit Weight	Unit Dimensions
	SNMP-2PV3	Two Port Internal SNMP Card	1 lb	7.25″ x 6″ x 2.5″
	SNMP-EMPV2	Environmental Monitoring Sensor	1 lb	7.25″ x 6″ x 2.5″

Image	Model	Description	Utility Input	Output Connections	UPS Connections	Unit Weight	Unit Dimensions
	XBDM1020HV1	Bypass 16A capacity for use with T90i-1500 (includes IEC C20 C19 cord kit)	IEC C20 inlet	(2) IEC C19 + (4) IEC C13 front, (4) IEC C13 back	IEC C20	3.5 lbs	19.3″ x 3.5″ x 1.75″

Model	Description	Input Power Cord	Outlets	Unit Weight	Unit Dimensions
XPDU-IEC	230V Basic Power Distribution Unit for use with T90i-1500	IEC C20 inlet	(10) IEC C13 + (2) IEC C19	2.6 lbs	19.0″ x 3.5″ x 1.75″
XPD-AT15A	1500W Transformer PDU with Meter 208V to 120V for use with T90i-1500	Detachable IEC C14, 3ft	(16) 5–15R	19.7 lbs	19.0” x 10.5” x 3.5”
XAT-400	400VA Step Down Transformer 208V to 120V for use with T90i-1500	208V IEC C14, 2ft	120V 5–15R, 2ft	8.0 lbs	7.0” x 6.8” x 5.9”
