P91 5-10kVA Online UPS

P91 5-10kVA Online UPS offers up to 99% ECO mode efficiency, unity power factor, and hot-swappable batteries for critical IT systems.

5kVA-10kVA

208/230VAC or 208/120VAC

Complete Power Protection in Less Space for High Density Loads

General Details

Designed for high density critical loads, the P91 delivers industry leading reliability, efficiency and flexibility.

P91 can be configured for online or ECO mode operation for efficiency of up to 99%. Output voltage and frequency are programmable to meet a wide range of USA and international requirements.

Product Snapshot

Available models: 5000VA, 6000VA, 10000VA
99% efficiency in ECO mode
Unity power factor

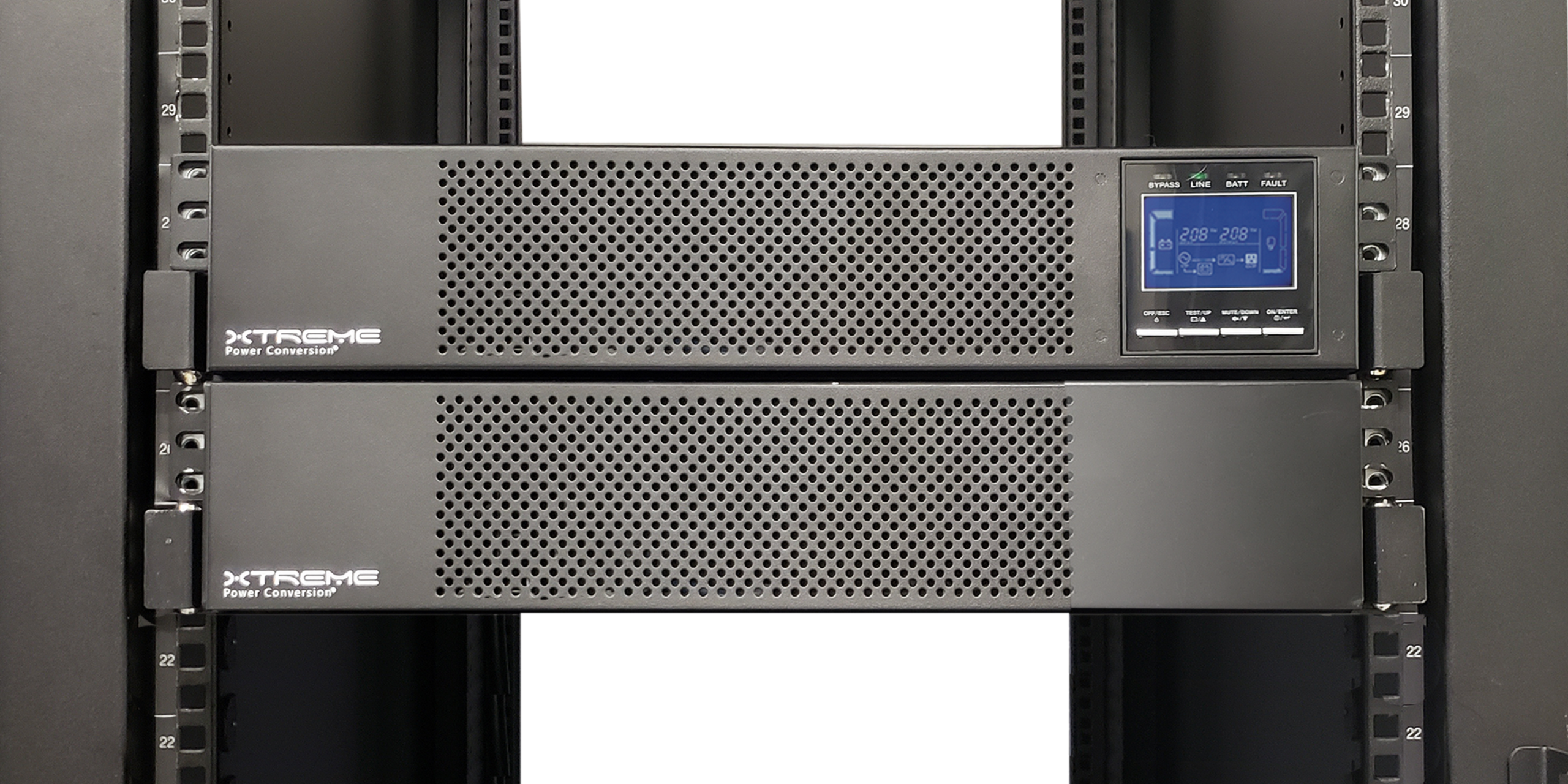

Tower, wall, 2-post and 4-post rack mounting configurations
Extended battery runtimes with optional matching battery modules
UL, cUL, FCC, RoHS, CE (pending)
3 years electronics, 3 years battery warranty (USA and Canada)

Categories: Backup Power, Online UPS Tags: Backup Power, Online UPS Brand: Xtreme

Description
Reviews (0)

Specifications

	MODEL NUMBER	P91-5k	P91-6k	P91-10k
CAPACITY	Power rating	5kVA (5kW)	6kVA (6kW)	10kVA (10kW)
INPUT	Voltage Range	110–300VAC*
INPUT	Frequency	50/60Hz
OUTPUT	Voltage	208/220/230/240VAC (208/120V or 240/120V with optional transformer)***
	Frequency	50/60Hz ± 4Hz
	Overload capacity	110% 10 min; 130% 1 min; > 130% 1 sec
	THD (full load)	< 4%
	Efficiency	Up to 95% online mode or 99% ECO mode
BATTERY	Charger amps	1–4A
BATTERY	Nominal/float voltage	240/273VDC
PHYSICAL	dimensions (W x D x H)	17.2 x 23.6 x 3.5 in
PHYSICAL	Weight	33.1 lbs		39.7 lbs
BYPASS DISTRIBUTION MODULE	Model	XBDM-P91A (5 or 6kVA)	XBDM-P91B	XBDM-P91C	XBDM-P91D
	Input connection	L6-30P with 6’ cord	Terminal Blocks or optional line cord
	Output connection	(2) L6-30R + (2) C19** each with breaker	Terminal block + L6-30R + (2) C19** each with breaker	Terminal block + L6-30R with breaker	(2) L6-30R each with breaker
ENVIRONMENT	Operating temperature	32–104°F (0–40°C)
	Audible noise	<55dBA			<58dBA
	Altitude	11,500 ft above sea level
APPROVALS		UL, FCC, RoHS, CE
WARRANTY		3 years electronics, 3 years battery warranty (USA and Canada)
COMMUNICATIONS INTERFACE		RS-232, USB, EPO, intelligent slot for optional cards (Web/SNMP, relay/dry contact, modbus)
INCLUDED IN BOX		Software CD, horizontal brackets, tower pedestals, USB cable
AVAILABLE OPTIONS		5 year extended warranty, 4-post rail kit, 2-post shelf kit, 2U/3U isolation transformer
