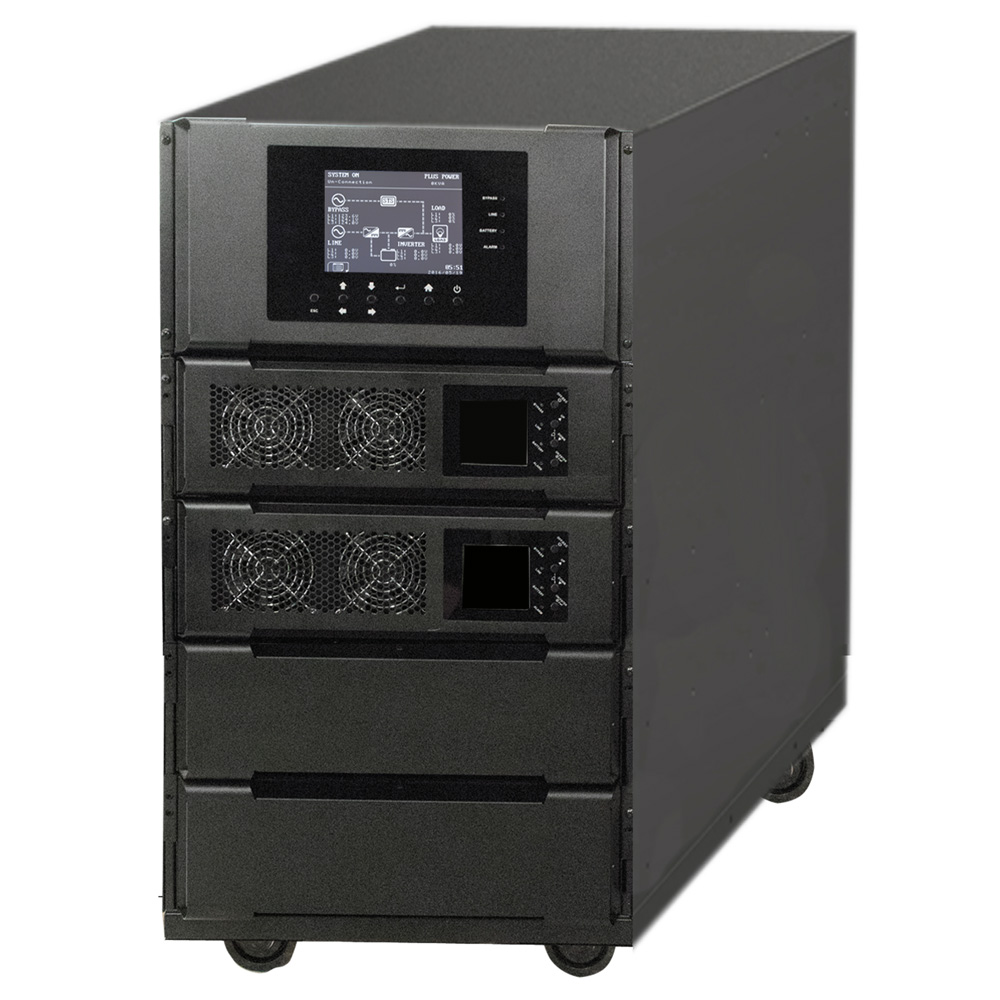

M90S-4S Modular Online UPS

M90S-4S Modular Online UPS provides scalable 6–12kVA power with up to 98% efficiency and hot-swappable modules for critical IT infrastructure.

6kVA/6kW, 12kVA/12kW

208/120VAC Single-Phase Online UPS

Modular, Flexible UPS for Continuous Power Availability.

General Details

Xtreme Power M90S UPS is a scalable, modular, flexible solution that combines continuous power availability and the highest efficiency for mission critical applications.

M90S provides unity power factor output (kVA = kW) providing maximum usable power and avoids any need to oversize the UPS. Maintenance bypass and output distribution within the UPS frame eliminate the need for external component connections, reducing installation costs.

Capacity, redundancy, battery runtime, and output receptacles can all be customized to meet your specific needs. Hot swappable power and battery modules provide rapid maintenance and repair.

Product Snapshot

Capacity: 6kVA/6kW
Unity output power factor (kVA =kW)
Up to 98% ECO mode or 93% online efficiency
Hardwired or cord configurations
3 years electronics, 3 years battery warranty (USA and Canada)

Categories: Backup Power, Online UPS Tags: Backup Power, Online UPS Brand: Xtreme

Description
Reviews (0)

Specifications

	MODEL NUMBER	M90S-4S6k	M90S-4S12k
CAPACITY	Power Rating	6kVA/6kW	12kVA/12kW
INPUT	Voltage/frequency nominal	120/208V or 120/240V & 50/60Hz auto-sensing (2PH+N+G)
INPUT	Voltage/frequency range	152-269VAC* (L-L) / 40–70Hz
OUTPUT	Voltage/Frequency	120/208V or 120/240V & 50/60Hz ± 0.1Hz; (2PH+N)
	Efficiency / THD (full load)	Up to 98% ECO mode, 93% online mode
	Overload capacity	100% – 110% for 30 min; 110% – 130% for 5min; 130% – 150% for 10s; > 150% for 200ms
BATTERY SYSTEM	Nominal voltage	+/-96V
BATTERY SYSTEM	Max charging (adjustable)	4A	8A

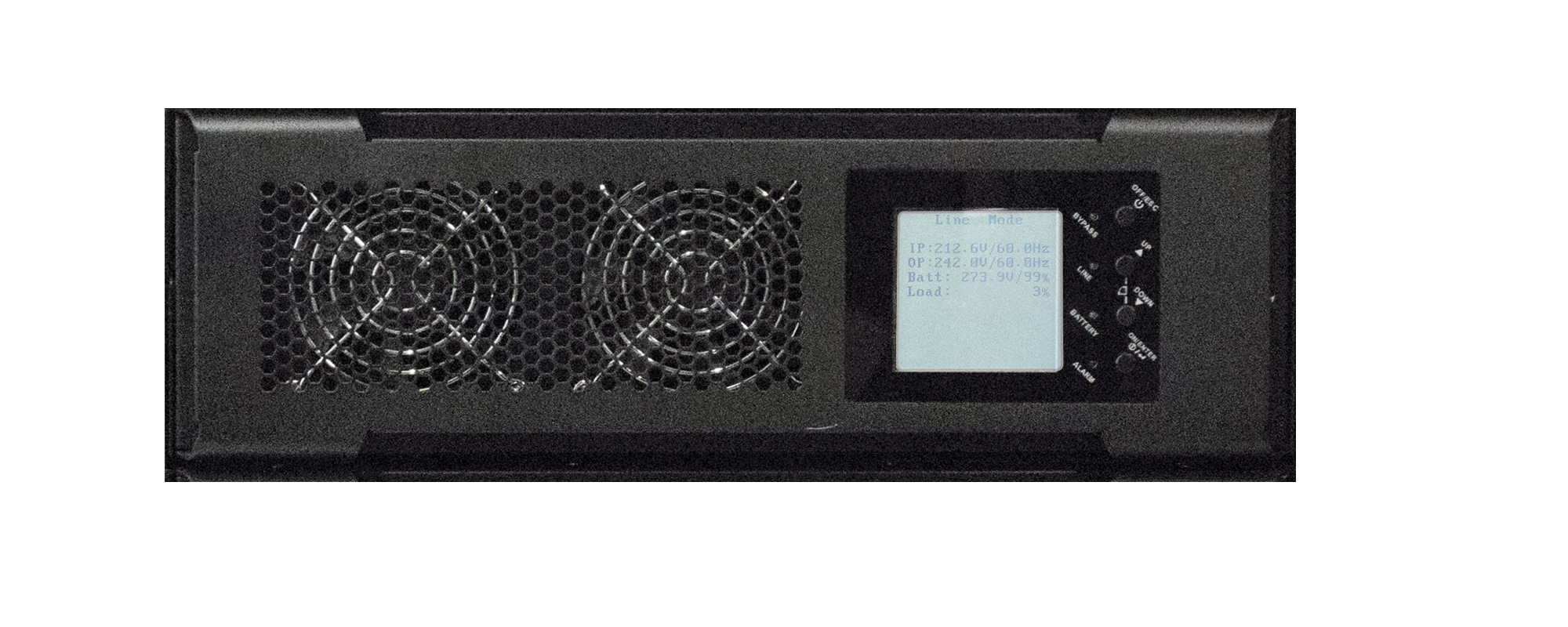

MODULE DIMENSION & WEIGHT		16.3”W x 24”D x 5.2”H / 49.6 lbs

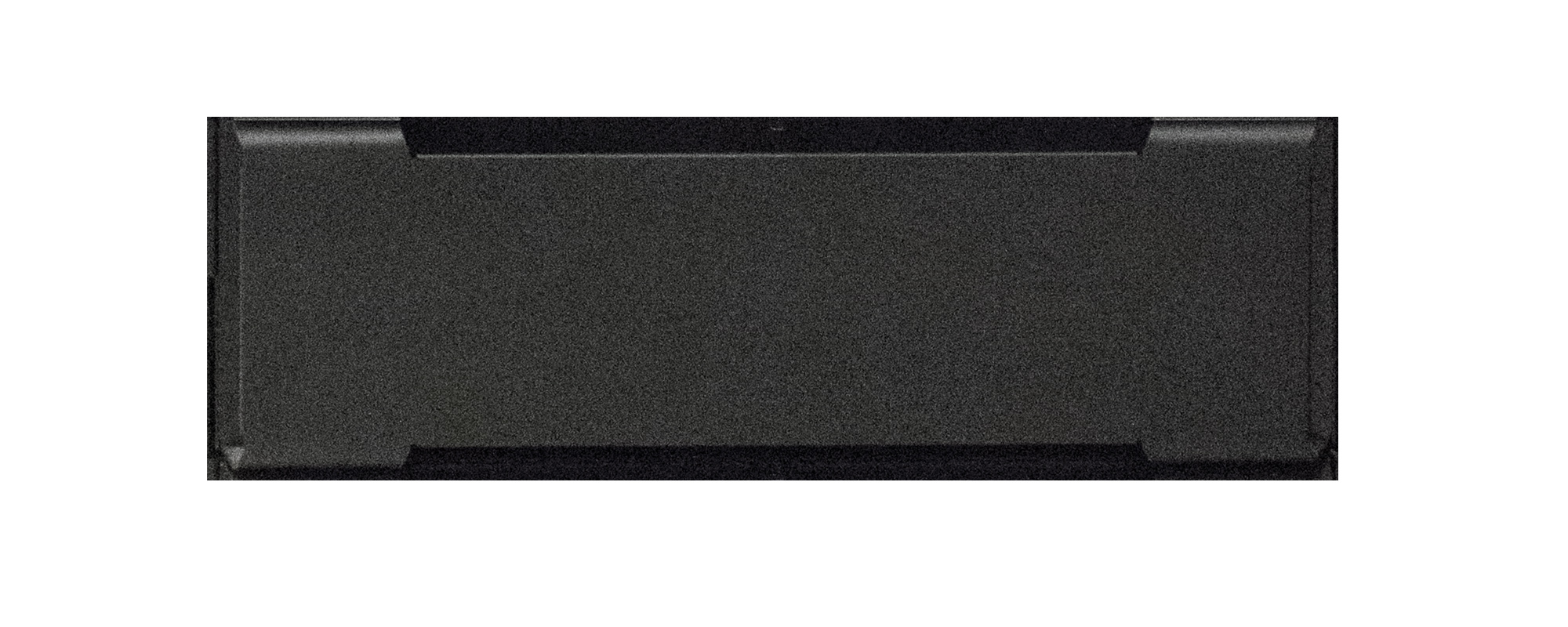

	Battery module	16.3”W x 24”D x 5.2”H / 115 lbs
SYSTEM ENCLOSURE	Dimensions & Weight	UPS 17.4”W x 33.7”D x 33”H & 150lbs / BC7 17.4”W x 33.7”D x 45.5”H & 162lbs
	Maximum Capacity	"4 slots including 2 universal slots + 2 battery only slots"
	Enclosure Capacity	12kVA
	Optional Battery Enclosure	7 slots for additional battery modules

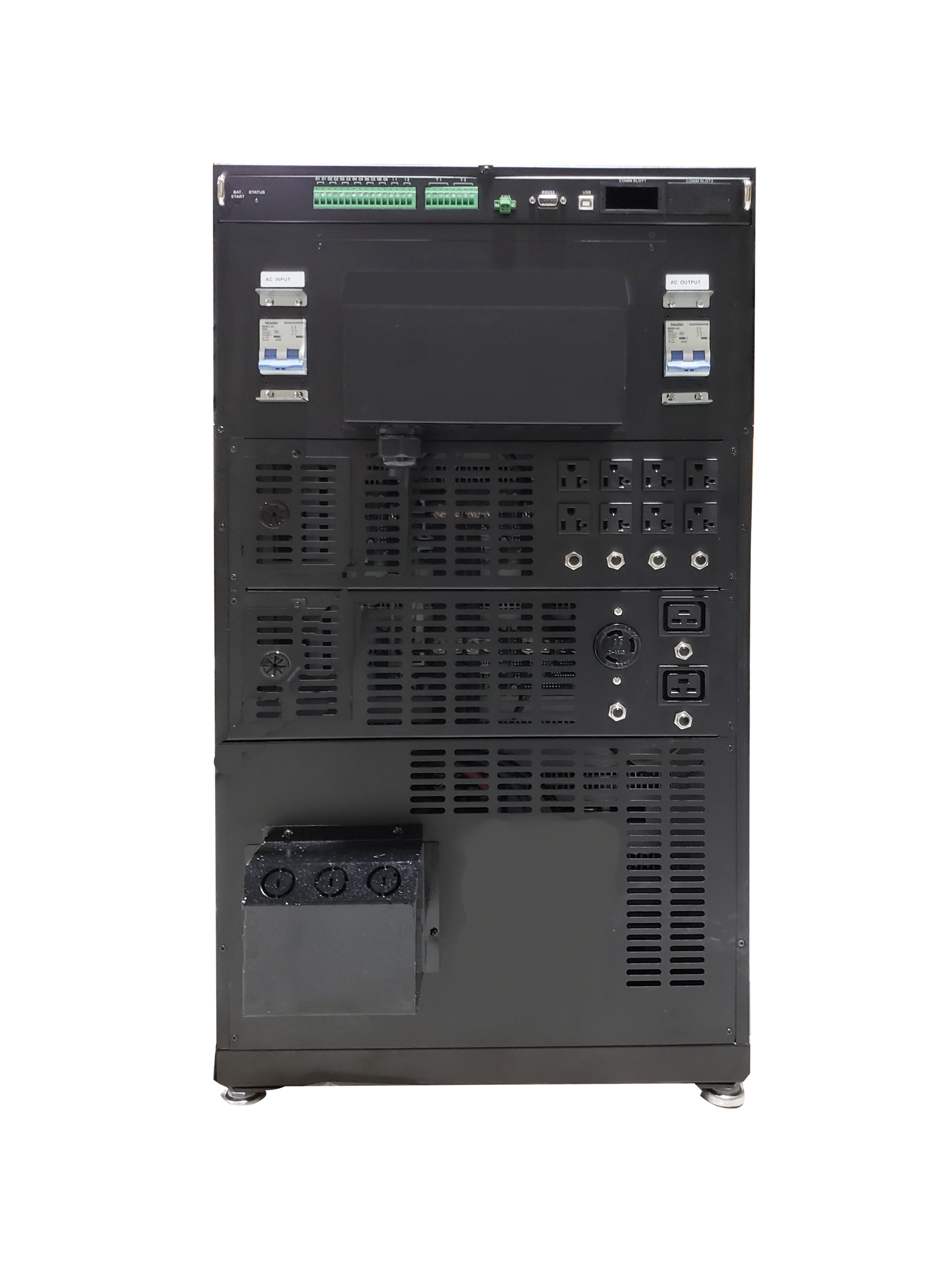

	Output Connections	Terminal blocks and/or up to 2 receptacle panels
ENVIRONMENT	Temperature	0–40°C (32–104°F)**
	Altitude	5,200 ft above sea level**
	Audible noise	< 58dBA at 1m
APPROVALS		UL-1778 (TUV), cUL, FCC A, RoHS
WARRANTY		3 year electronics, 3 year battery (USA and Canada)

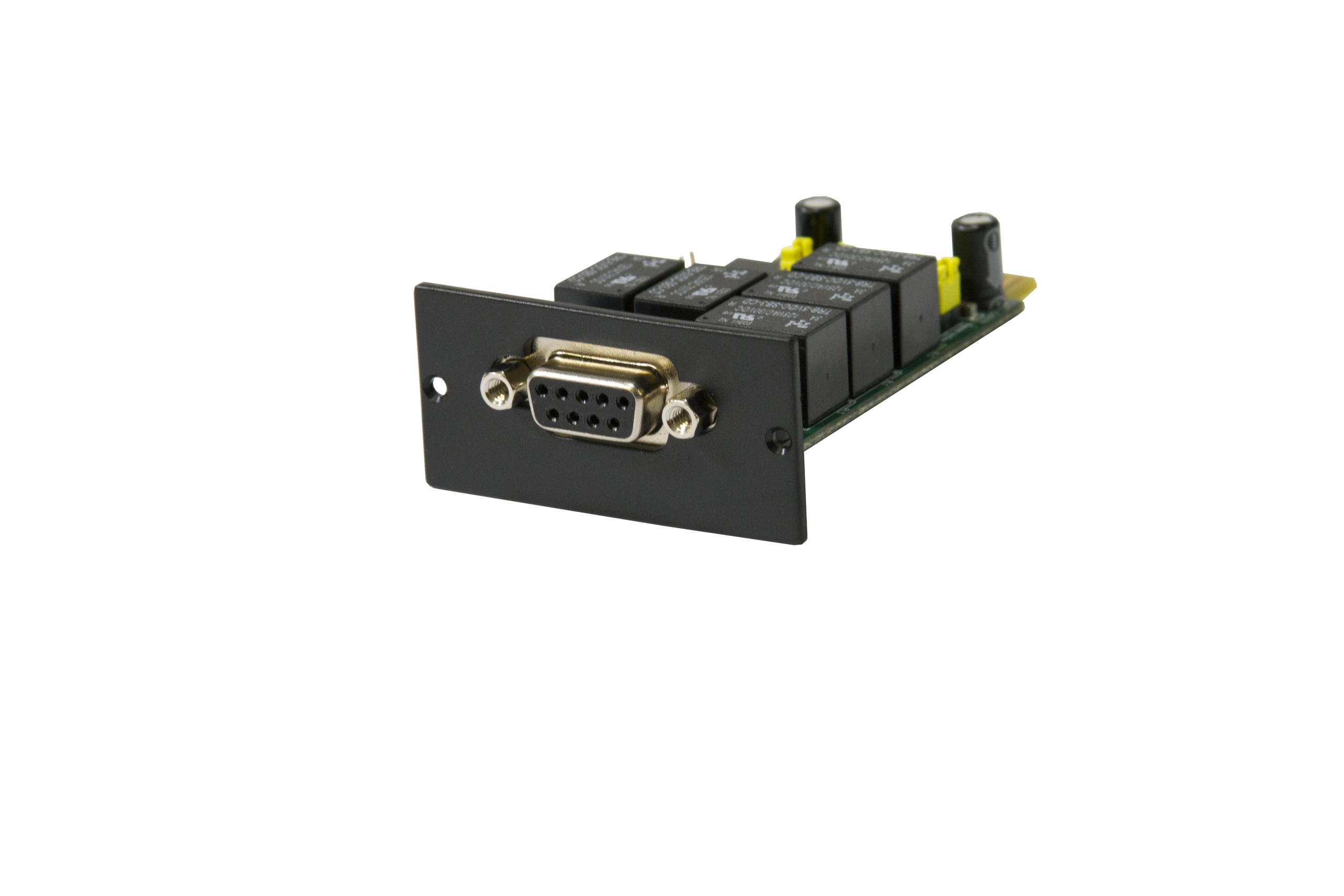

COMMUNICATIONS INTERFACE		RS-232, USB, Dry Contacts, EPO, (2) intelligent slot for optional cards (Web/SNMP, Relay, Modbus)
INCLUDED IN BOX		User manual, USB cable, RS-232 cable, ViewPower Software, anchor brackets
extended warranty	output distribution	4-post rail kit	2-post shelf kit
