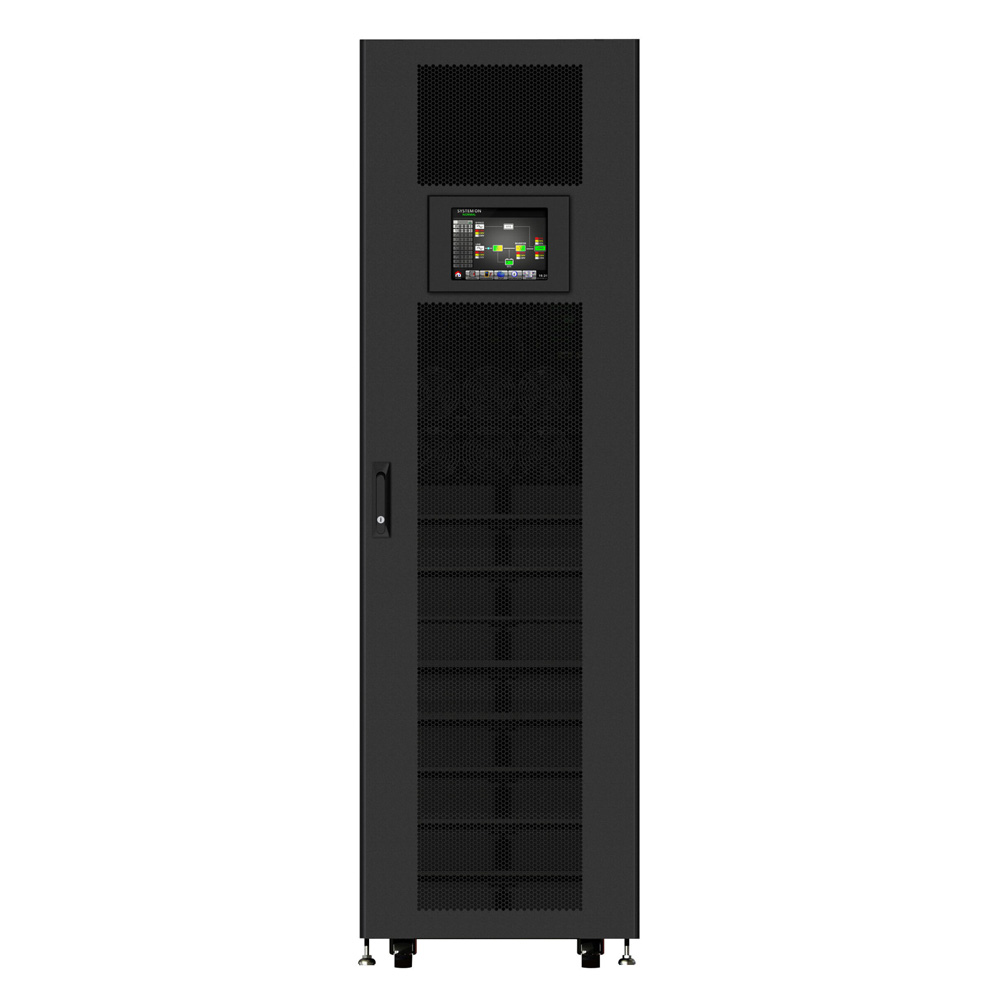

X90-2S Three-Phase UPS

X90-2S Three-Phase UPS offers scalable 50–140kW power with 99% ECO efficiency, hot-swappable modules, and compact design for critical systems.

50kVA-140kVA

480VAC 3W three-phase UPS

Scalable, Modular, Compact 480V UPS

General Details

The X90-2S is a scalable modular online double conversion UPS that protects critical data and equipment from power problems while supplying clean and reliable network grade power.

The fully integrated X90-2S UPS includes maintenance bypass and batteries (up to 140kW) in single cabinet providing the most compact footprint and simplifying installation.

Product Snapshot

Capacities: 50kW, 70kW, 100kW, 140kW
65kAIC Rating
Hot swappable power and battery modules
UL-1778 , cUL, FCC A, RoHS, TAA
2 years warranty (USA and Canada)

Categories: Backup Power, Three Phase UPS Tags: Backup Power, Three Phase UPS Brand: Xtreme

Description
Reviews (0)

Specifications

	MODEL NUMBER	X90-2S50k	X90-2S70k	X90-2S100k	X90-2S140k
CABINET CAPACITY	X90-2S UPS: power modules	Up to 140kW (2 x 70kW) or up to 100kVA (2 x 50kW)
	X90-2S UPS: battery modules	4, 8, 12, 16 or 20 battery modules
	X90-BC: battery modules	Up to 36 additional battery modules
INPUT	Voltage / frequency nominal	480VAC (3W)	50/60Hz auto-sensing
INPUT	Voltage / frequency range	329 – 520VAC (L-L), 40–70Hz
OUTPUT	Voltage	480VAC (3W)
	Frequency	40–70Hz
	Efficiency	Up to 96% online mode or 99% ECO mode
	Overload capacity	1105%-110% for 60min; 110%-125% for 10min; 126%-150% for 1min; >150% for 200ms
BATTERY SYSTEM	Nominal voltage	+/-240VDC
	Battery Quantity	(40) 12V/9AH	(60) 12V/9AH
	Charge Current (programable)	18A	36A
Dimensions & WEIGHTS	UPS & Battery Cabinet (W x D x H)	23.6 x 42 x 79 in / 357 lbs (UPS) / 23.6 x 42 x 79 in 878 lbs (BC)
Dimensions & WEIGHTS	Power & Battery module (W x D x H)	4.2 x 28 x 6 in / 104 lbs (PM) 17.2 x 29.5 x 5.25 in / 73 lbs (BM)
ENVIRONMENT	Operating temperature	0–40°C (32–104°F)
	Audible noise	< 69dBA at 1m
	Altitude	5,200 ft above sea level*
APPROVALS		UL-1778, cUL, FCC A, RoHS, TAA
WARRANTY		2 years (USA and Canada)
COMMUNICATIONS INTERFACE		RS-232, EPO, intelligent slot for optional cards (Web/SNMP, Relay, Modbus)
INCLUDED IN BOX		User manual, RS-232 communication cable, USB cable
AVAILABLE OPTIONS		External Maintenance bypass, Battery Temperature Sensor
