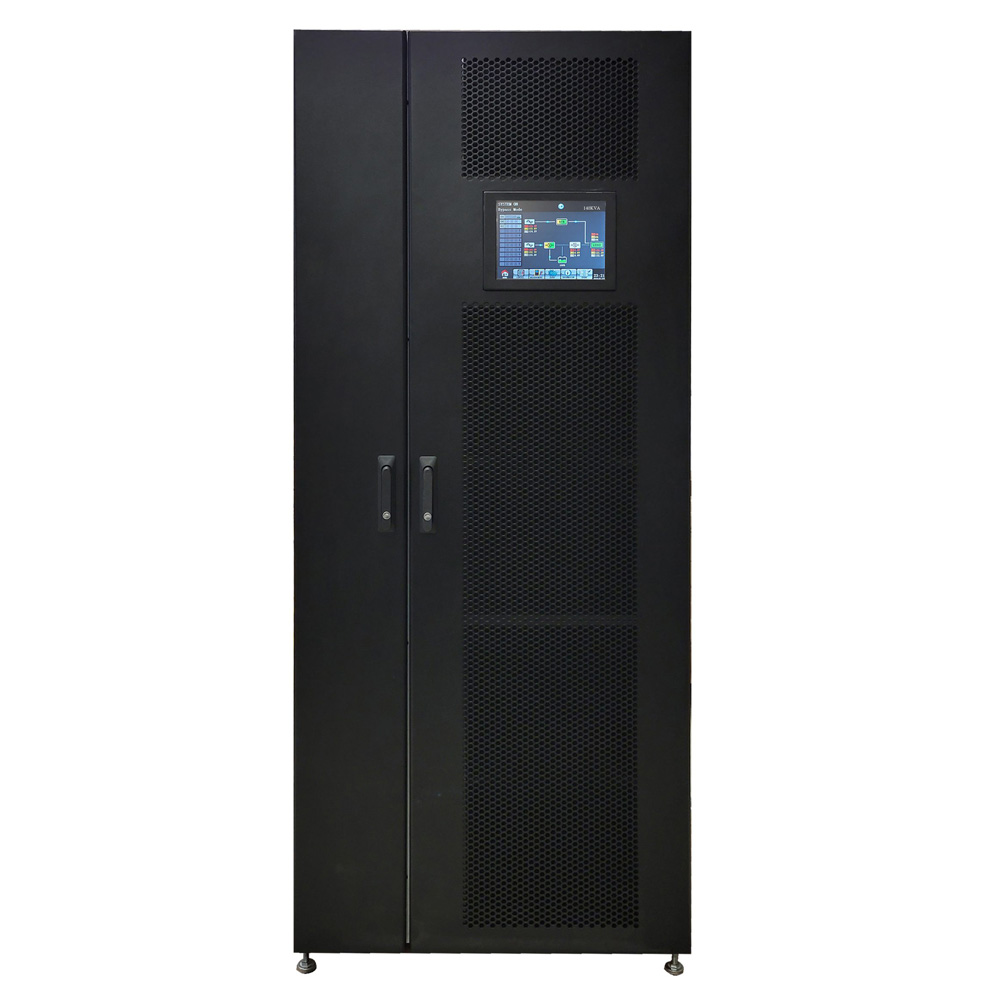

X90-5S Three-Phase UPS

X90-5S Three-Phase UPS offers scalable 50–350kW power, 99% ECO efficiency, and hot-swappable modules for critical infrastructure.

50kVA-350kVA

480VAC 3W three-phase UPS

Scalable, Modular, Compact 480V UPS

General Details

The X90-5S is a scalable modular online double conversion UPS that protects critical data and equipment from power problems while supplying clean and reliable network grade power.

Optional 65kAIC maintenance bypass in slim matching cabinet providing the most compact footprint and reduced installation costs.

Product Snapshot

Capacities: 50kW, 70kW, 100kW, 140kW, 150kW, 200kW, 210kW, 250kW, 280kW, 350kW
65kAIC Rating
Hot swappable power and battery modules
UL-1778 , cUL, FCC A, RoHS, TAA
2 years warranty (USA and Canada)

Categories: Backup Power, Three Phase UPS Tags: Backup Power, Three Phase UPS Brand: Xtreme

Description
Reviews (0)

Specifications

	MODEL NUMBER	X90-5S50k	X90-5S70k	X90-5S100k	X90-5S140k	X90-5S150k	X90-5S200k	X90-5S210k	X90-5S250k	X90-5S280k	X90-5S350k
CABINET CAPACITY	X90-5S UPS: power modules	Up to 350kW (5 x 70kW) or up to 250kVA (5 x 50kW)
	X90-2S UPS: battery modules	4, 8, 12, 16 or 20 battery modules
	X90-BC: battery modules	Up to 36 additional battery modules
INPUT	Voltage / frequency nominal	480VAC (3W), 50/60Hz auto-sensing
INPUT	Voltage / frequency range	329 – 520VAC (L-L), 40–70Hz
OUTPUT	Voltage	480VAC (4W)
	Frequency	40–70Hz
	Efficiency	Up to 96% online mode or 99% ECO mode
	Overload capacity	1105%-110% for 60min; 110%-125% for 10min; 126%-150% for 1min; >150% for 200ms
BATTERY SYSTEM	Nominal voltage	+/-240VDC
Charge Current (programmable)		18A		36A		54A		72A		90A
Dimensions & WEIGHTS	UPS & Battery Cabinet (W x D x H)	31.5 x 42 x 79 in 787 lbs (UPS) / 23.6 x 42 x 79 in 838 lbs (BC)
	Bypass enclosure (W x D x H)	11.8 x 42 x 79 in / 400 lbs
	Power & Battery module (W x D x H)	17.2 x 31.2 x 5.25 in / 104 lbs (PM) 17.2 x 31.2 x 5.25 in / 73 lbs (BM)
ENVIRONMENT	Operating temperature	0–40°C (32–104°F)
	Audible noise	< 69dBA at 1m
	Altitude	5,200 ft above sea level*
APPROVALS		UL-1778, cUL, FCC A, RoHS, TAA
WARRANTY		2 years (USA and Canada)
COMMUNICATIONS INTERFACE		RS-232, EPO, intelligent slot for optional cards (Web/SNMP, Relay, Modbus)
INCLUDED IN BOX		User manual, RS-232 communication cable, USB cable
AVAILABLE OPTIONS		External Maintenance bypass, Battery Temperature Sensor
