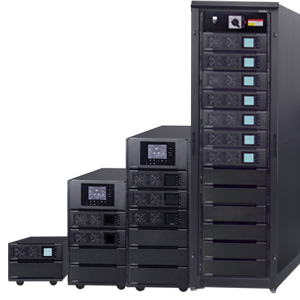

M90S Custom Modular Online UPS

M90S Custom Modular Online UPS offers scalable 24–60kVA power with 98% efficiency and hot-swappable modules for critical IT infrastructure.

24kVA, 30kVA, 36kVA, 42kVA, 48kVA, 54kVA, 60kVA

208/120VAC Single-Phase Online UPS

Modular, Flexible UPS for Continuous Power Availability.

General Details

Xtreme Power M90S Custom UPS is a scalable, modular, customizable solution that combines continuous power availability and the highest efficiency for mission critical applications.

M90S Custom provides reliable 240/120V or 208/120V (2Ph+N+G) split phase power up to 60kW. Applications include Containerized Data Centers, Edge Computing and Cell Tower applications which do not have access to three phase utility or generator power.

Capacity, redundancy and battery runtime can all be customized to meet your specific needs. Hot swappable power and battery modules provide rapid maintenance and repair.

Product Snapshot

Capacities: 24kVA, 30kVA, 36kVA, 42kVA, 48kVA, 54kVA, 60kVA
Modular for capacity or redundancy
Unity output power factor (kVA =kW)
Hot swappable power and battery modules
Up to 98% ECO mode or 93% online efficiency
3 years electronics, 3 years battery warranty (USA and Canada)

Categories: Backup Power, Online UPS Tags: Backup Power, Online UPS Brand: Xtreme

Description
Reviews (0)

M90S has many advantages over competitive units: Eaton 9170, 9170 Plus, 9170+, APC Symmetra LX, Eaton 9XPM, Powerware ASY-0673, Powerware ASY-0529, Liebert APS. See below links for comparisons.

Xtreme M90S – Vertiv APS Comparison Xtreme M90S – Eaton 9PXM Comparison Xtreme M90S – APC Symmetra LX Comparison

Specifications

	MODEL NUMBER	M90S-30K	M90S-36K	M90S-42K	M90S-48K	M90S-54K	M90S-60K
CAPACITY	Power Rating	30kVA/30kW	36kVA/36kW	42kVA/42kW	48kVA/48kW	54kVA/54kW	60kVA/60kW
INPUT	Voltage/frequency nominal	120/208V or 120/240V & 50/60Hz auto-sensing (2PH+N+G)
INPUT	Connections	152-269VAC (L-L) / 40–70Hz
OUTPUT	Voltage/Frequency	120/208V or 120/240V & 50/60Hz ± 0.1Hz; (2PH+N)
	Efficiency/THD (full load)	Up to 98% ECO mode, 93% online mode
	Overload capacity	100% – 110% for 30 min; 110% – 130% for 5min; 130% – 150% for 10s; > 150% for 200ms
BATTERY SYSTEM	Nominal voltage	+/-96V
BATTERY SYSTEM	Max charging (adjustable)	16A	20A	24A	28A	32A	36A	40A
DIMENSION & WEIGHT	Power Module	16.3”W x 24”D x 5.2”H / 38 lbs
	Battery Module	16.3”W x 24”D x 5.2”H / 107 lbs
	Maintenance Bypass	17”W x 24”D x 5.25”H (3U) / 50 lbs
	Control Module	11.2”W x 17.1”D x 1.7”H (1U) / 9 lbs
SYSTEM DIMENSIONS	UPS	12U	15U	18U	21U	24U	27U	30U
Battery		12U
ENVIRONMENT	Temperature	0–40°C (32–104°F)**
	Altitude	5,200 ft above sea level**
	Audible noise	< 58dBA at 1m
APPROVALS		UL-1778 (TUV), cUL, FCC A, RoHS
WARRANTY		3 year electronics, 3 year battery (USA and Canada)
COMMUNICATIONS INTERFACE		RS-232, USB, Dry Contacts, EPO, (2) intelligent slot for optional cards (Web/SNMP, Relay, Modbus)
INCLUDED IN BOX		User manual, USB cable, RS-232 cable, ViewPower Software, anchor brackets
AVAILABLE OPTIONS		Maintenance Bypass, Custom Output Distribution, Start-up, and Extended warranty
