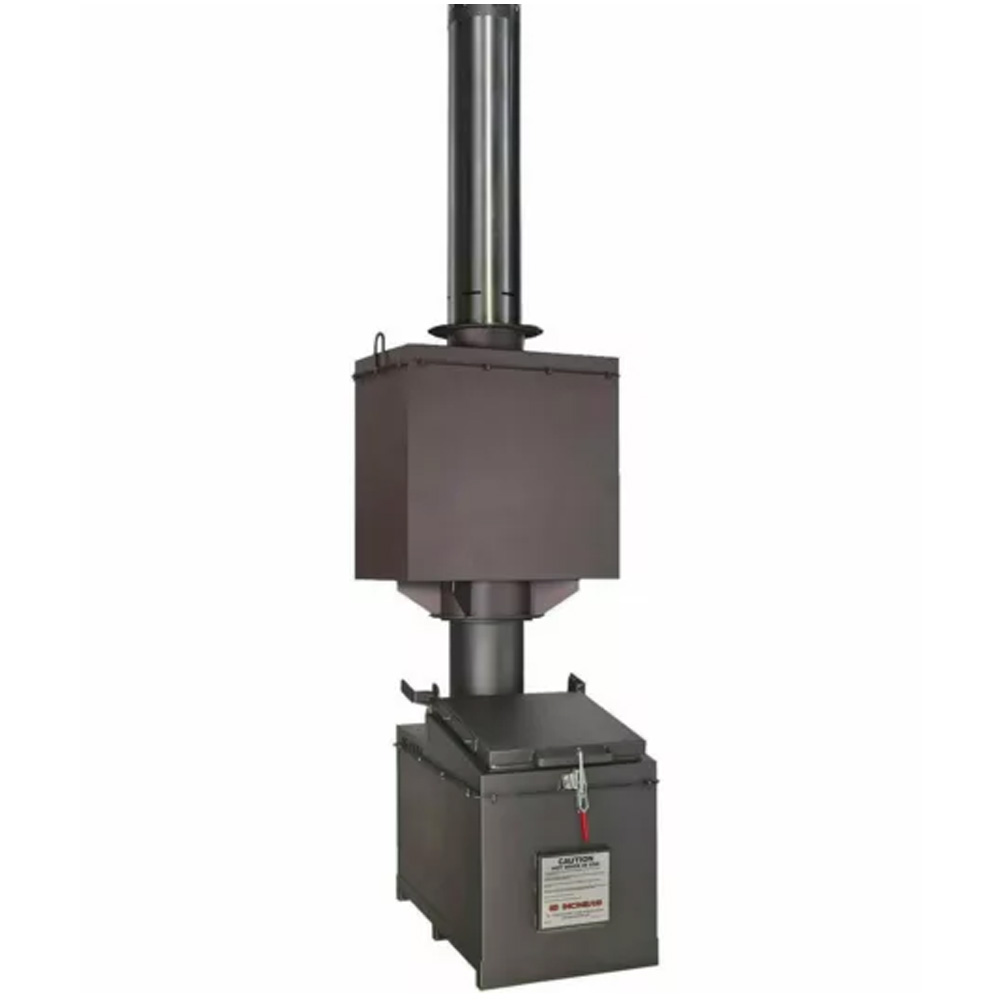

I8-20S General Incinerator

I8-20S General Incinerator is a simple and effective small incinerator with suitability for various non-hazardous waste types such as wood, paper, cardboard and other uncontaminated materials.

Our versatile range of ‘S’ model incinerators are designed to be multi-purpose. This particular model benefits from a top loading design and very simple operation process. Ideal as a stand-alone machine.

Overview

The addition of a secondary chamber allows this model to operate without smoke, odours or harmful emissions.

Features

Enhanced Coretex insulation
Multi-zone temperature control
Mobile options available
CE2 Advanced control panel
Modular refractory lining

Categories: Incinerators, General Tags: General, incinerator Brand: Inciner8

Description
Reviews (0)

Download Datasheet

Applications

Camps
Military Operations
Boarding Schools
< 70 People Communities
Industrial Waste < 300kg day

Technical Specifications

Operational Specifications

Combustion Chamber Volume (m3): 0.18m3
Burn Rate*: up to 20kg per hour
Average Fuel Consumption: 4 – 6 ltrs p/h
Operational Temperature: > > 850°C
Gas Retention in Secondary Chamber: 0.5 secs
Temperature Monitoring: Yes
Average ash residue (%): 3%
Thermostatic Device: Yes

Physical Specifications

External Length (mm): 1070mm
External Width (mm): 670mm
External Height (mm): 3670mm
Door Size (mm): 490 x 490
Shipping Weight: 800kg

For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additional accessories (autoloader, de-asher) can also have a major impact on actual burn rates.
