I8-M80 Medical Incinerator

I8-M80 Medical Incinerator is specifically designed to deal with all types of medical waste. This model is a controlled air incinerator, providing optimal combustion conditions for all different waste streams. The front-loading design provides excellent liquid retention.

I8-M80 incinerator is specifically designed to deal with all types of medical waste. This model is a controlled air incinerator, providing optimal combustion conditions for all different waste streams. The front-loading design provides excellent liquid retention.

Overview

The M80 has the addition of an advanced control panel to allow the optimum burn setting according to your waste stream including medical, clinical, pharmaceutical, pathological and hazardous waste. This unit also benefits from a secondary chamber with a gas residence afterburner to eliminate harmful emissions.

Features

Enhanced Coretex insulation
Multi-zone temperature control
Mobile options available
CE2-VFD Advanced control panel

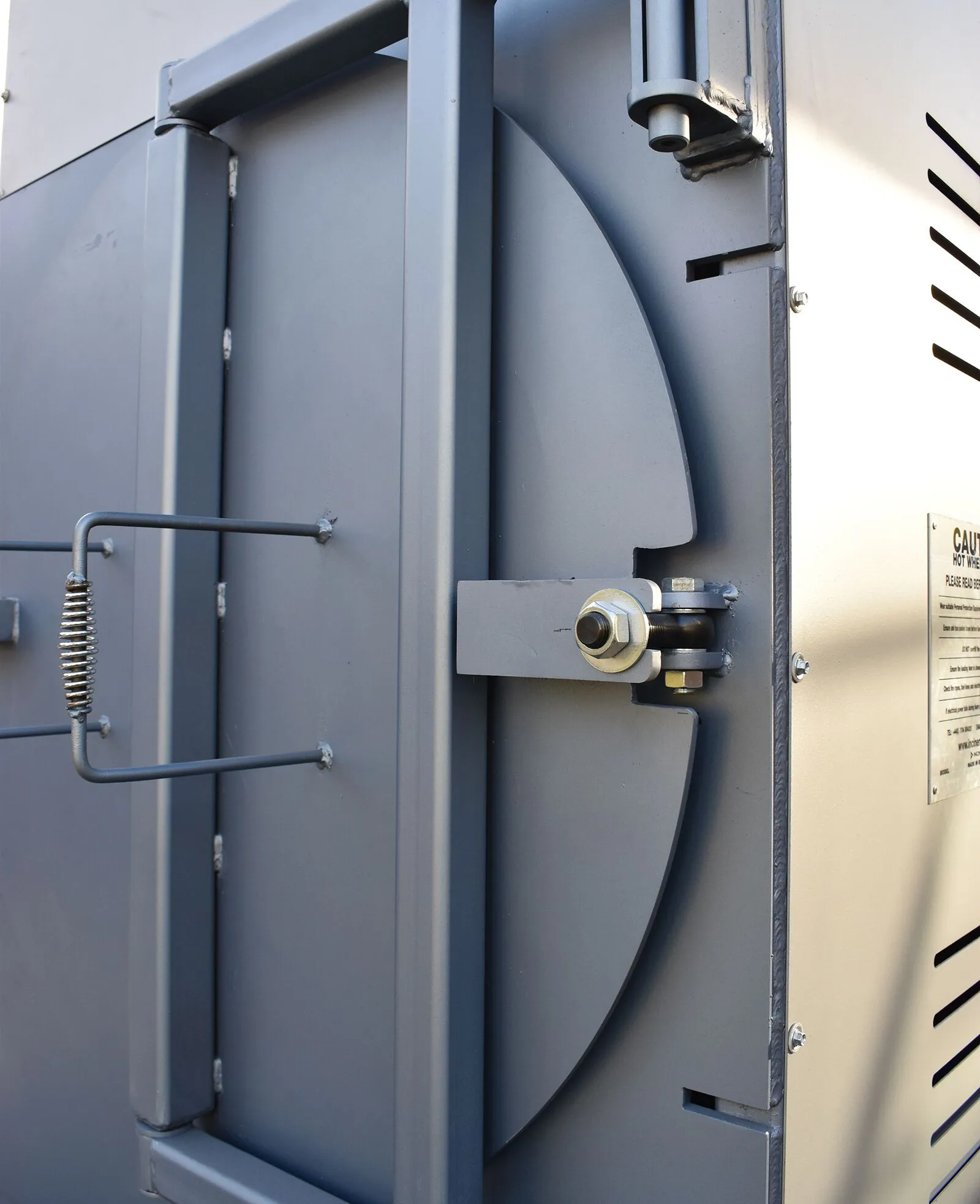

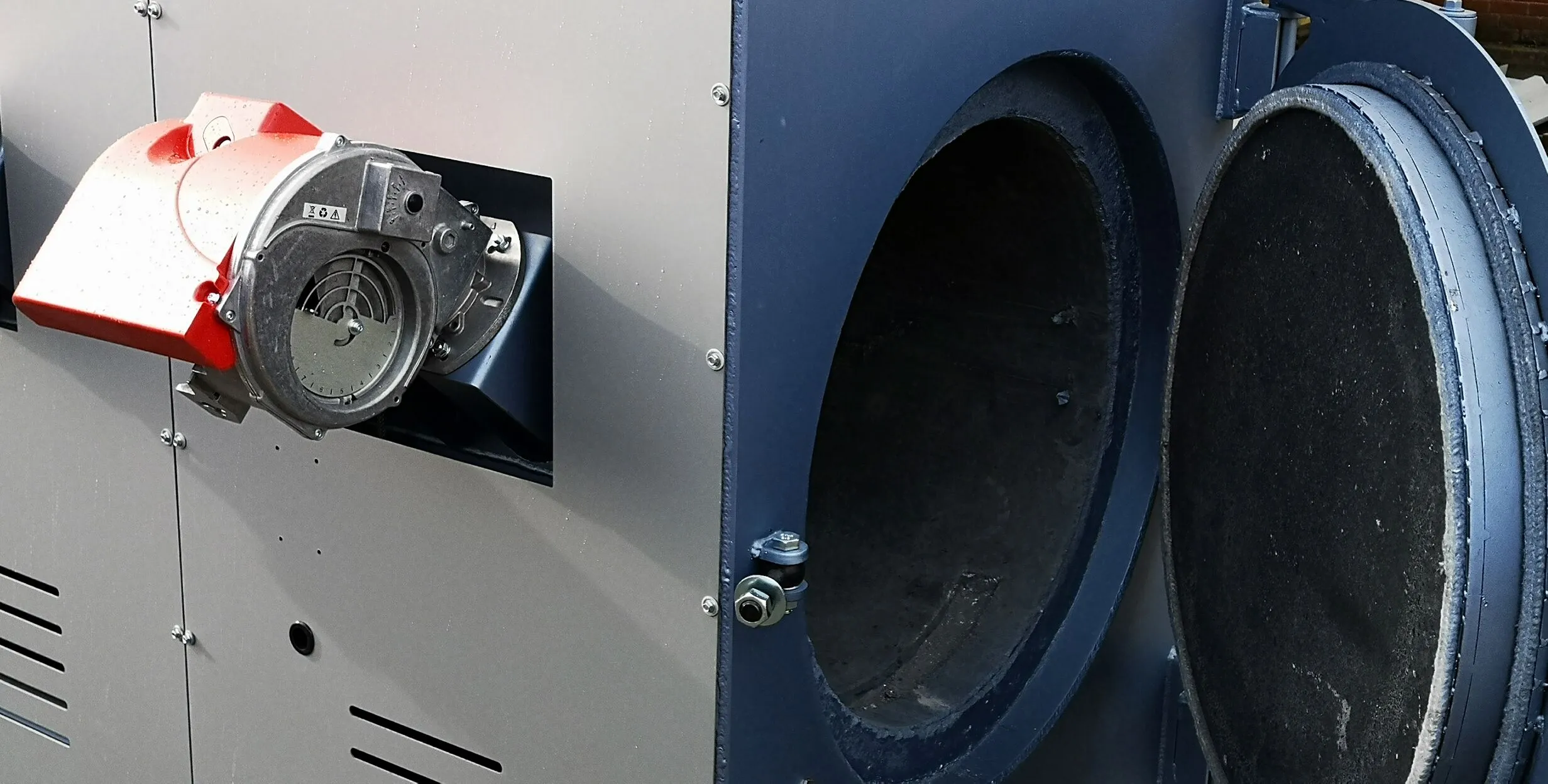

Front loading design

Categories: Incinerators, Medical Tags: incinerator, Medical Brand: Inciner8

Description
Reviews (0)

Download Datasheet

Applications

Dental / Cosmetic Clinics
Blood Banks / Collection
< 250 Bed Medical Facilities
Medical Facilities
< 400 Bed Medical Facilities

Technical Specifications

Operational Specifications

Combustion Chamber Volume (m3): 0.75m3
Burn Rate*: up to 50kg per hour
Average Fuel Consumption: 11 – 15 ltrs p/h
Operational Temperature: > > 850°C
Gas Retention in Secondary Chamber: 2 secs
Temperature Monitoring: Yes
Average ash residue (%): 3%
Thermostatic Device: Yes

Physical Specifications

External Length (mm): 1610mm
External Width (mm): 1190mm
External Height (mm): 4680mm
Door Size (mm): 990mm x 910mm
Shipping Weight: 2450kg

For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additional accessories (autoloader, de-asher) can also have a major impact on actual burn rates.
