I8-40S General Incinerator

I8-40S General Incinerator is a simple and effective incinerator from our small range with suitability for various non-hazardous waste types such as wood, paper, cardboard and other uncontaminated materials.

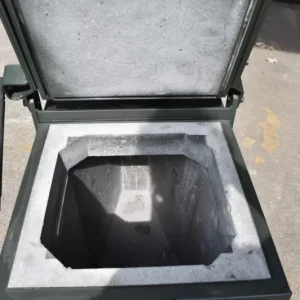

Our versatile range of ‘S’ model incinerators are designed to be multi-purpose. This particular model benefits from a top loading design and very simple operation process. Ideal as a stand-alone machine.

Overview

The addition of a secondary chamber allows this model to operate without smoke, odours or harmful emissions. Inbuilt after burners ensure harmful emissions are eradicated. Easy to use and maintain and built to the highest quality standards by the Inciner8 team.

Features

Enhanced Coretex insulation
Multi-zone temperature control
Mobile options available
CE2 Advanced control panel
Modular refractory lining

Categories: Incinerators, General Tags: General, incinerator Brand: Inciner8

Description
Reviews (0)

Applications

Camps
Military Operations
Remote Housing
< 120 People Communities
Industrial Waste < 500kg day

Technical Specifications

Operational Specifications

Combustion Chamber Volume (m3): 0.36m3
Burn Rate*: up to 35kg per hour
Average Fuel Consumption: 8 – 10 ltrs p/h
Operational Temperature: > > 850°C
Gas Retention in Secondary Chamber: 0.5 secs
Temperature Monitoring: Yes
Average ash residue (%): 3%
Thermostatic Device: Yes

Physical Specifications

External Length (mm): 1240mm
External Width (mm): 920mm
External Height (mm): 3930mm
Door Size (mm): 560 x 560
Shipping Weight: 1250kg

For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additional accessories (autoloader, de-asher) can also have a major impact on actual burn rates.
