Morningstar Prostar 15A Charge Controller

Get a quote

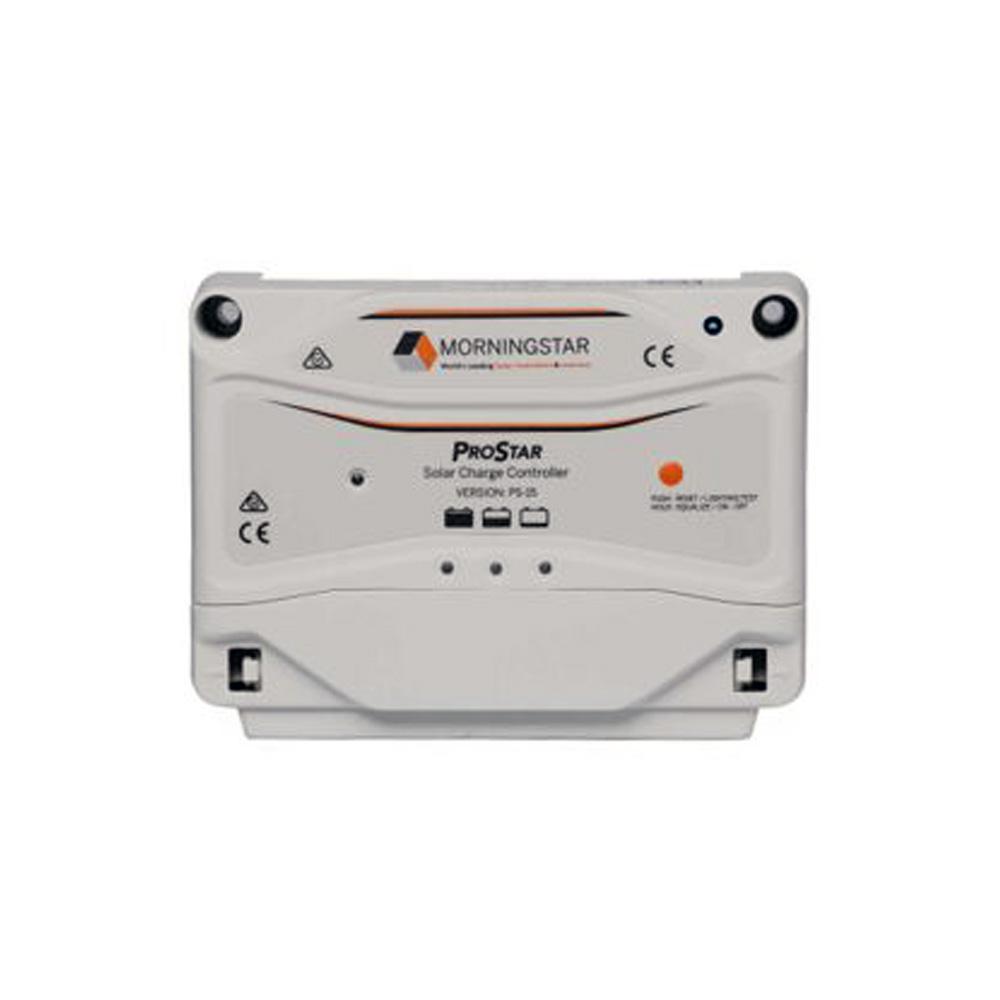

Morningstar Prostar 15A Charge Controller PS-15M

Name: Morningstar Prostar 15A Charge Controller PS-15M - Melanite
SKU: PS-15M

Morningstar Prostar 15A Charge Controller: 15 A PWM regulator for 12/24 V systems with LVD, temperature compensation and meter option.

Product Details

Morningstar Prostar 15A Charge Controller is designed for reliable solar battery management in 12 V or 24 V systems, rated at 15 amps for charge and load. The Morningstar Prostar 15A Charge Controller features built-in low-voltage disconnect (LVD) protection, integrated temperature compensation (TC) and optional digital meter and on/off switch for real-time system monitoring. With the Morningstar Prostar 15A Charge Controller you get rugged PWM charging technology, selectable battery chemistry (sealed, gel, flooded) and a solid-state design built for harsh environments. The Morningstar Prostar 15A Charge Controller offers professional-grade performance and long-term durability for off-grid homes, lighting systems, remote cabins and marine installations.

SKU: PS-15M Categories: Solar Energy, Charge Controller Tag: Morningstar Charge Controller Brand: Morningstar

Description
Reviews (0)

Product Description

The Morningstar Prostar 15A Charge Controller is a high-quality PWM solar charge controller engineered to optimise battery life and system efficiency in small to medium 12 V or 24 V solar installations. The Morningstar Prostar 15A Charge Controller delivers 15 amps of charging capacity and integrates a low-voltage disconnect (LVD) feature that safeguards your battery against deep discharge, along with temperature compensation (TC) that adjusts charging based on ambient conditions to extend battery health. With the Morningstar Prostar 15A Charge Controller you benefit from selectable charging profiles tailored for sealed, gel or flooded batteries, optional digital meter display and on/off switch for monitoring and control, and a fan-free, low-maintenance build suitable for remote or harsh locations. The Morningstar Prostar 15A Charge Controller is ideal for applications such as off-grid residences, solar lighting systems, telecommunications backup, marine power systems or rural electrification projects. With its reliable protection suite — including over-current, reverse polarity, high temperature and lightning/transient surge safeguards — the Morningstar Prostar 15A Charge Controller offers peace of mind and efficient performance in demanding solar power applications.

Product Specification

Model	PS-15	PS-15M	PS-30	PS-30M
Charge Rating	15 amps	15 amps	30 amps	30 amps
Max. PV Open Circuit Voltage (Voc) for 12/24V batteries	30/60 volts	30/60 volts	30/60 volts	30/60 volts
Nominal Battery Voltage	12V or 24V	12V or 24V	12V or 24V	12V or 24V
Battery Chemistry Supported	L/A, Li, NiCd, others	L/A, Li, NiCd, others	L/A, Li, NiCd, others	L/A, Li, NiCd, others
Battery Voltage Range	10-35V	10-35V	10-35V	10-35V
Voltage Accuracy	<=0.1% +/- 50mV	<=0.1% +/- 50mV	<=0.1% +/- 50mV	<=0.1% +/- 50mV
Operating Temperature Range	-40 C to +60C	-40 C to +60C	-40 C to +60C	-40 C to +60C
Warranty	5 Years	5 Years	5 Years	5 Years
Built-in meter	No	Yes	No	Yes
CE and RoHS compliant	Yes	Yes	Yes	Yes
TAA compliant	Yes	Yes	Yes	Yes
Approved for use in Hazardous Locations: Class 1, Division 2, Groups A-D	Yes	Yes	Yes	Yes
IEC 62109	Yes	Yes	Yes	Yes
ETL Listed [UL-1741 and Canadian CSA C22.2 No.107.1.01]	Yes	Yes	Yes	Yes
FCC Class B Part 15 Compliant	Yes	Yes	Yes	Yes
Manufactured in a Certified ISO 9001 Facility	Yes	Yes	Yes	Yes
