Morningstar 8KW Controller GS-MPPT-100M-200V

Name: Morningstar 8KW Controller GS-MPPT-100M-200V - Melanite
SKU: GS-MPPT-100M-200V

Morningstar 8KW Controller: premium MPPT solar charge controller delivering up to 100 A charging, 8 kW input and 30 A load control.

Product Details

Morningstar 8KW Controller is a high-capacity solar charge solution supporting 12 V, 24 V, 36 V or 48 V battery systems and engineered for heavy-duty performance. The Morningstar 8KW Controller handles up to 100 amps of charging current and accepts a maximum PV input voltage of 200 V, enabling up to 8000 W in compatible systems. With the Morningstar 8KW Controller you gain advanced MPPT tracking, intelligent load control of 30 amps and full communications capability. The Morningstar 8KW Controller features a robust, fanless design with modular expandability via ReadyRail/ReadyBlock options, making the Morningstar 8KW Controller ideal for residential, commercial and industrial solar installations.

SKU: GS-MPPT-100M-200V Categories: Solar Energy, Charge Controller Tag: Morningstar Charge Controller Brand: Morningstar

Description
Reviews (0)

Product Description

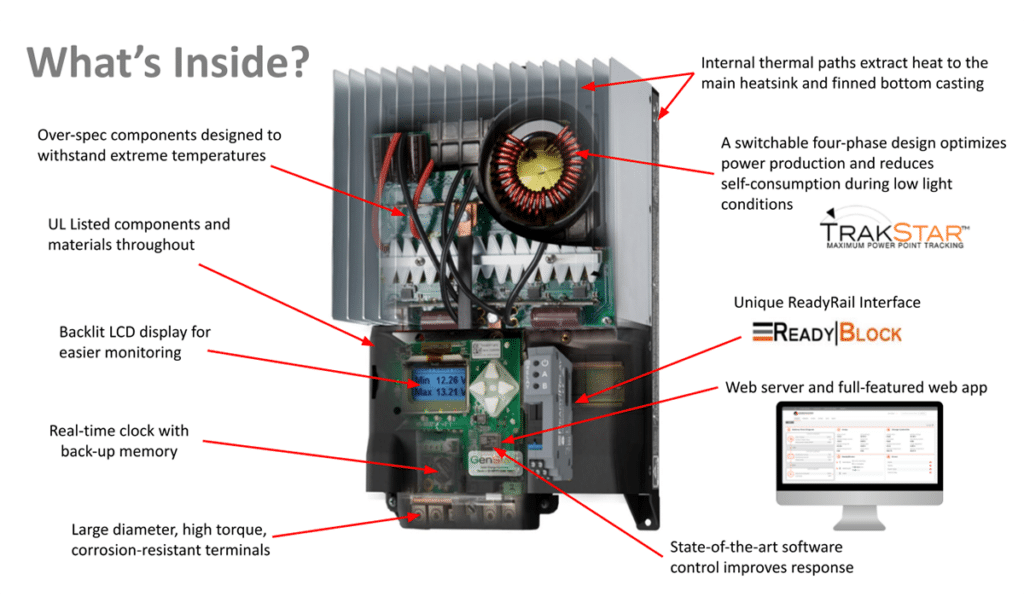

The Morningstar 8KW Controller is a next-generation MPPT solar charge controller designed for large-scale renewable energy systems where reliability, scalability and performance matter. The Morningstar 8KW Controller supports 12 V, 24 V, 36 V or 48 V battery banks, offers up to 100 amps of charging current and manages a maximum PV input of 200 V and up to 8 kW of array power. With the Morningstar 8KW Controller you benefit from state-of-the-art MPPT algorithms that maximise energy harvest, reduce losses and extend battery life. The Morningstar 8KW Controller features 30 amp built-in load control, network connectivity (WiFi, Ethernet, Modbus) and a durable fanless architecture designed for long-term reliability. Suitable for off-grid homes, telecom backup sites, agricultural operations and industrial solar deployments, the Morningstar 8KW Controller delivers flexibility, efficiency and future-proof performance in one integrated unit.

Product Specification

Model	GS-MPPT-60	GS-MPPT-80	GS-MPPT-100
Charge Rating	60 amps	80 amps	100 amps
Max. PV Open Circuit Voltage (Voc)	200 volts	200 volts	200 volts
Nominal Battery Voltage	12, 24, 36, or 48V	12, 24, 36, or 48V	12, 24, 36, or 48V
Max. Output / Max PV Input* – 12 volt battery	800W / 1200W	1064W / 1600W	1330W / 2000W
Max. Output / Max PV Input* – 24 volt battery	1600W / 2400W	2128W / 3200W	2660W / 4000W
Max. Output / Max PV Input* – 48 volt battery	3200W / 4800W	4256W / 6400W	5320W / 8000W
Peak efficiency	99%	99%	99%
Battery Operating Voltage Range	8-72Vdc	8-72Vdc	8-72Vdc
Load Current	30A	30A	30A
Max. Self-consumption	<3 Watts	<3 Watts	<3 Watts
Operating Temperature Range	-30C to +45C (full power); derate to 60C	-30C to +45C (full power); derate to 60C	-30C to +45C (full power); derate to 60C
Warranty	5 Years	5 Years	5 Years
Built-in meter	Yes	Yes	Yes
CE and RoHS compliant	Yes	Yes	Yes
IEC 62109-1	Yes	Yes	Yes
ETL Listed [UL-1741 and Canadian CSA C22.2 No.107.1.01]	Yes	Yes	Yes
FCC Class B Part 15 Compliant	Yes	Yes	Yes
CEC Australia listing	Future	Future	Future
IEC 60950, 62093, 62509	Future	Future	Future
Manufactured in a Certified ISO 9001 Facility	Yes	Yes	Yes
