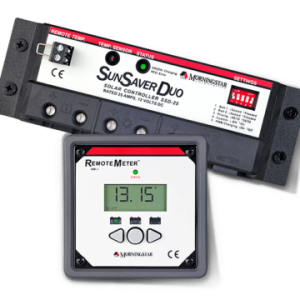

Morningstar SunSaver Controller SSD-25

Name: Morningstar SunSaver Controller SSD-25 - Melanite
SKU: SSD-25

Morningstar SunSaver Controller offers dual‑battery charging with advanced PWM for 25 A systems—perfect for RVs, boats and remote solar setups.

Product Details

Morningstar SunSaver Controller (SunSaver Duo 25 A) is a premium dual‑battery solar charge regulator built to serve 12 V systems up to 25 amps. The Morningstar SunSaver Controller enables simultaneous charging of two isolated batteries—ideal for a “house” battery and an engine battery. With the Morningstar SunSaver Controller you gain temperature compensation, series PWM four‑stage charging and robust electronic protection against wiring faults. The Morningstar SunSaver Controller features epoxy‑encapsulated construction and marine‑rated terminals, ensuring durability in harsh environments. The Morningstar SunSaver Controller is designed for RVs, caravans, boats, cabins and small homes needing efficient dual‑battery solar regulation without added cost of two separate controllers.

SKU: SSD-25 Categories: Solar Energy, Charge Controller Tag: Morningstar Charge Controller Brand: Morningstar

Description
Reviews (0)

Product Description

The Morningstar SunSaver Controller (SunSaver Duo 25 Amp) is engineered to deliver professional‑grade solar charge control for two battery banks from a single PV array. The Morningstar SunSaver Controller uses its dual‑battery charging capability to allocate charge current between Battery #1 and Battery #2 based on user‑selectable priority settings—ensuring one bank gets the majority until it is full, then the rest flows to the second. With the Morningstar SunSaver Controller you benefit from advanced PWM regulation across four stages (bulk, absorption, float, and boost/equalize) combined with temperature compensation to optimize battery life in varying climates. The Morningstar SunSaver Controller is built tough: epoxy‑encapsulated, aluminium heat‑sink housing, corrosion‑resistant terminals, and full protections for reverse polarity, over‑current, wiring mistakes and high‑temperature situations. Ideal for off‑grid cabins, marine/boat systems, RVs, caravans or remote monitoring sites, the Morningstar SunSaver Controller simplifies dual battery solar setups with one controller while maximizing reliability, extending battery lifespan and minimizing cost.

Product Specification

Model	SSD-25	SSD-25RM
Charge Rating	25 amps	25 amps
Max. PV Open Circuit Voltage (Voc)	30 volts	30 volts
Nominal Battery Voltage	12V	12V
Self Consumption	6 to 10 mA	6 to 15 mA
Battery Voltage Range	1-15V	1-15V
Voltage Accuracy	1.0%	1.0%
Operating Temperature Range	-40 C to +45C	-40 C to +45C
Warranty	5 Years	5 Years
Remote Meter included	No	Yes
CE and RoHS compliant	Yes	Yes
TAA compliant	Yes	Yes
Manufactured in a Certified ISO 9001 Facility	Yes	Yes
