Module Level Optimizer SE-S1201

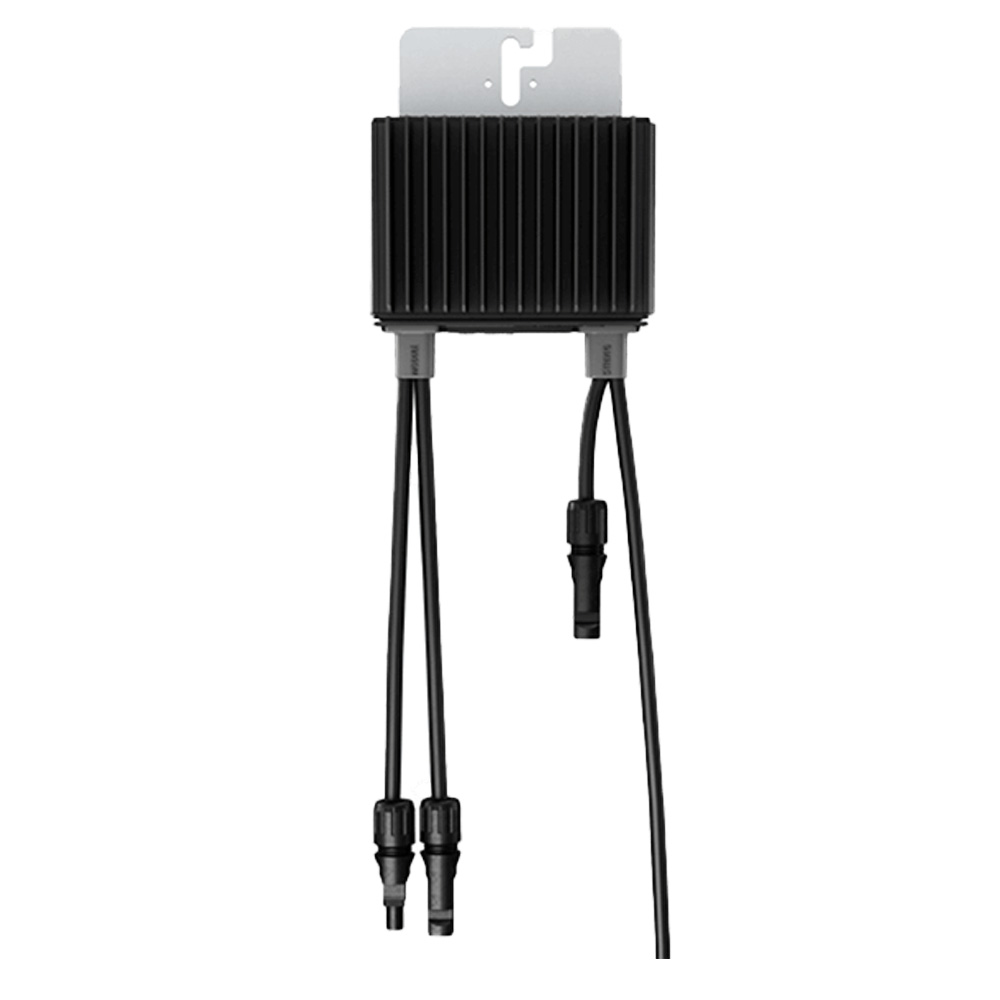

Name: Module Level Optimizer SE-S1201 - Melanite
SKU: SE-S1201

Module Level Optimizer maximizes each panel’s output with MPPT, safety shutdown, and module-level monitoring in commercial PV arrays.

Product Details

The Module Level Optimizer series includes commercial models (e.g. S1000, S1200) engineered for dual-module input configuration. Each Module Level Optimizer delivers up to ~1,050 W (S1000) or ~1,200 W (S1200) rated input power, and operates efficiently with up to 99.5 % conversion performance. These Module Level Optimizer units support MPPT across 12.5 V to 105 V input ranges, with a continuous current rating up to 15 A and short-circuit tolerance of 20 A. Every Module Level Optimizer includes built-in safety features, such as reduced voltage to touch-safe levels on shutdown (SafeDC). They enable module-level monitoring, fault isolation, and long strings with reduced BOS components. Rugged and compact, the Module Level Optimizer is ideal for commercial or utility systems demanding reliability, flexibility, and high yields.

SKU: SE-S1201 Categories: Solar Energy, Optimizer Tag: SolarEdge Optimizer Brand: Solar Edge

Description
Reviews (0)

Product Description

A Module Level Optimizer ensures that each solar panel in a commercial installation works independently, so underperforming modules don’t drag down the whole string. The Module Level Optimizer applies MPPT per module, boosting energy capture under shading, soiling, orientation, or mismatch conditions. With integrated monitoring, the Module Level Optimizer gives you panel-level data and alerts for diagnostics, enabling efficient maintenance. Safety is integral: the Module Level Optimizer reduces DC voltage to safe levels upon shutdown, thanks to engineered shutdown protocols. Scalable and flexible, this Module Level Optimizer supports longer strings, fewer cables, and compatibility with bifacial and high-power modules, lowering total system costs while maximizing yield.
