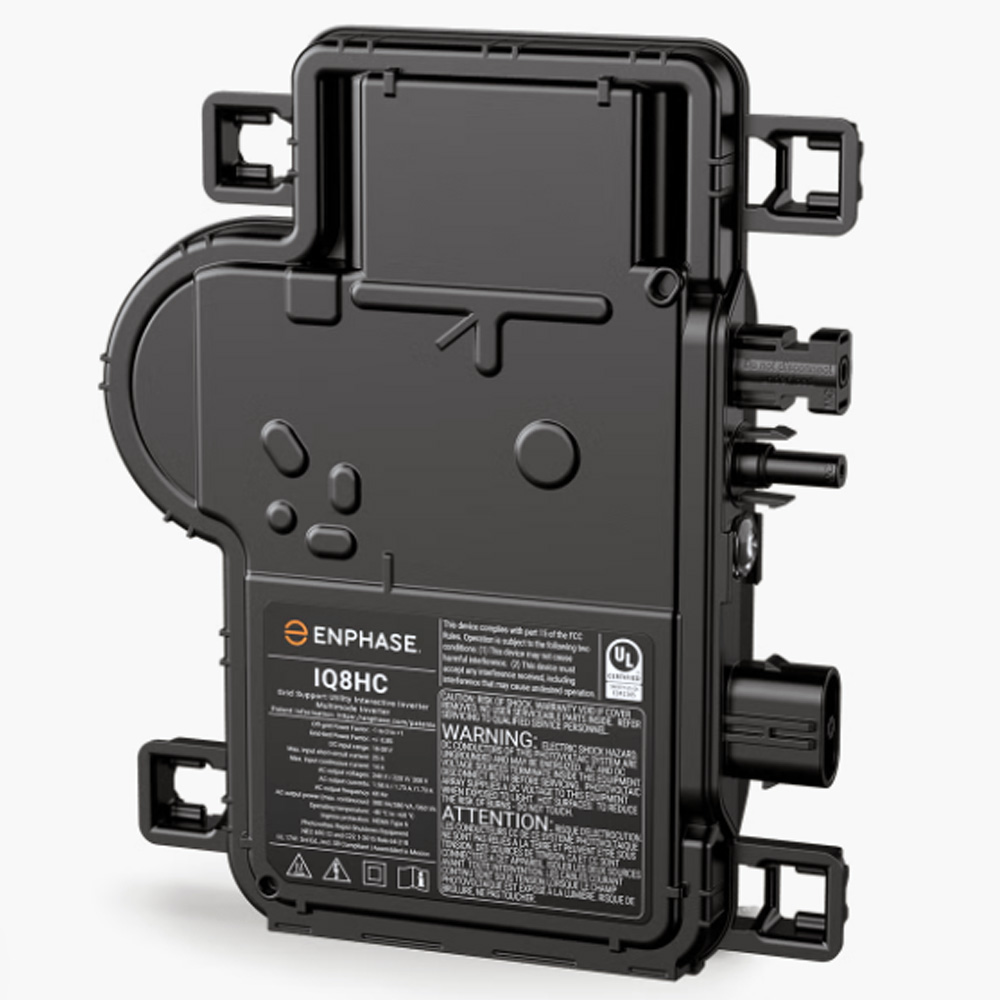

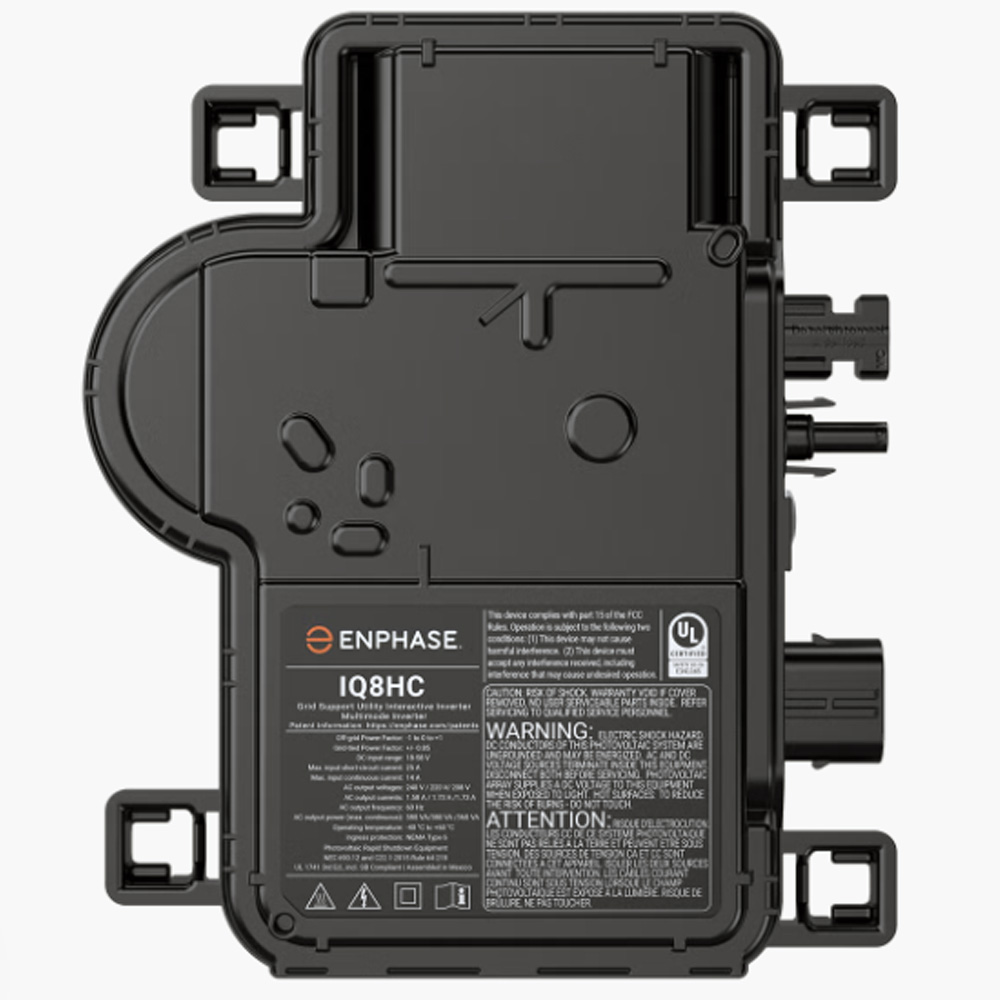

Home Solar Microinverter IQ8HC-72-M-US

Name: Home Solar Microinverter IQ8HC-72-M-US - Melanite
SKU: IQ8HC-72-M-US

Home Solar Microinverter converts DC to AC efficiently, supports grid-tied and off-grid modes, and integrates with IQ Battery and Enphase monitoring.

Product Details

The Home Solar Microinverter IQ8HC is a next-generation, software-defined device designed to convert DC power from PV modules into AC power efficiently. This Home Solar Microinverter uses a proprietary ASIC, enabling fast response to changing loads and grid events, and supports both grid-tied and off-grid operation. Fully integrated with the Enphase Energy System, the Home Solar Microinverter works seamlessly with IQ Battery, IQ Gateway, and the Enphase App for monitoring and system management. Installation is simplified with integrated MC4 connectors, while UL listing for PV rapid shutdown ensures safety compliance. With over one million cumulative hours of testing, this Home Solar Microinverter offers reliability and durability backed by an industry-leading 25-year warranty, making it ideal for modern residential solar energy systems.

SKU: IQ8HC-72-M-US Categories: Solar Energy, Micro-inverter Tag: Enphase Microinverter Brand: Enphase

Description
Reviews (0)

Product Description

The Home Solar Microinverter IQ8HC maximizes energy production by operating each solar module independently, ensuring shading or mismatch does not reduce system output. This Home Solar Microinverter integrates with IQ Battery, IQ Gateway, and Enphase App for complete system monitoring and analysis. With split-phase power conversion and grid-forming capabilities, the Home Solar Microinverter supports backup and off-grid applications while maintaining high efficiency. UL-listed for PV rapid shutdown, it combines safety, durability, and performance. Compact and easy to install with MC4 connectors, the Home Solar Microinverter provides homeowners with a reliable, future-ready solution that enhances solar energy production and ensures long-term system reliability.

Details

Lightweight and compact with plug-and-play connectors
Power line communication (PLC) between components
Faster installation with simple two-wire cabling
Produces power even when the grid is down*
More than one million cumulative hours of testing
Class II double-insulated enclosure
Optimized for the latest high-powered PV modules
Complies with the latest advanced grid support
Remote automatic updates for the latest grid requirements
Configurable to support a wide range of grid profiles
Meets CA Rule 21 (UL 1741-SA) and IEEE 1547:2018 (UL 1741-SB)
*Only when installed with IQ System Controller 2, meets UL 1741.

Technical and Specifications

Peak output power: 384 VA @240 Vac, 366 VA @208 Vac*
Input power: 320 – 540 W
Maximum continuous output power: 380 VA @240 Vac, 360 VA @208 Vac*
Operating range: 18 – 58 V
Length 212.00 mm
Width 175.00 mm
Height 30.20 mm
Weight 2.4 lbs
*IQ8HC @ 208 Vac operates only in single-phase and supports grid-tied mode only.
